Product Overview

Introducing the TSS UPVC Butt Hinges, expertly crafted to fit a wide range of UPVC profiles. These hinges feature a 2D adjustment system, complete with Allen keys for easy final adjustments and precise alignment.

Key Features

• Stability and Strength: Designed with integral fixing lugs and seven screw fixing positions, ensuring optimal stability and strength for your doors.

• Enhanced Security: Equipped with a security anti-lift pin that prevents pin removal, providing an added layer of safety by eliminating the risk of the door being lifted out.

Why Choose TSS?

At TSS, we believe that quality should be accessible without breaking the bank. Our commitment to delivering high-quality products that meet industry specifications ensures that you receive the best value for your investment. Each product is manufactured to rigorous standards, guaranteeing an upgrade from your current choices.

Product Specifications

• Manufacturer: TSS
• Colour: White

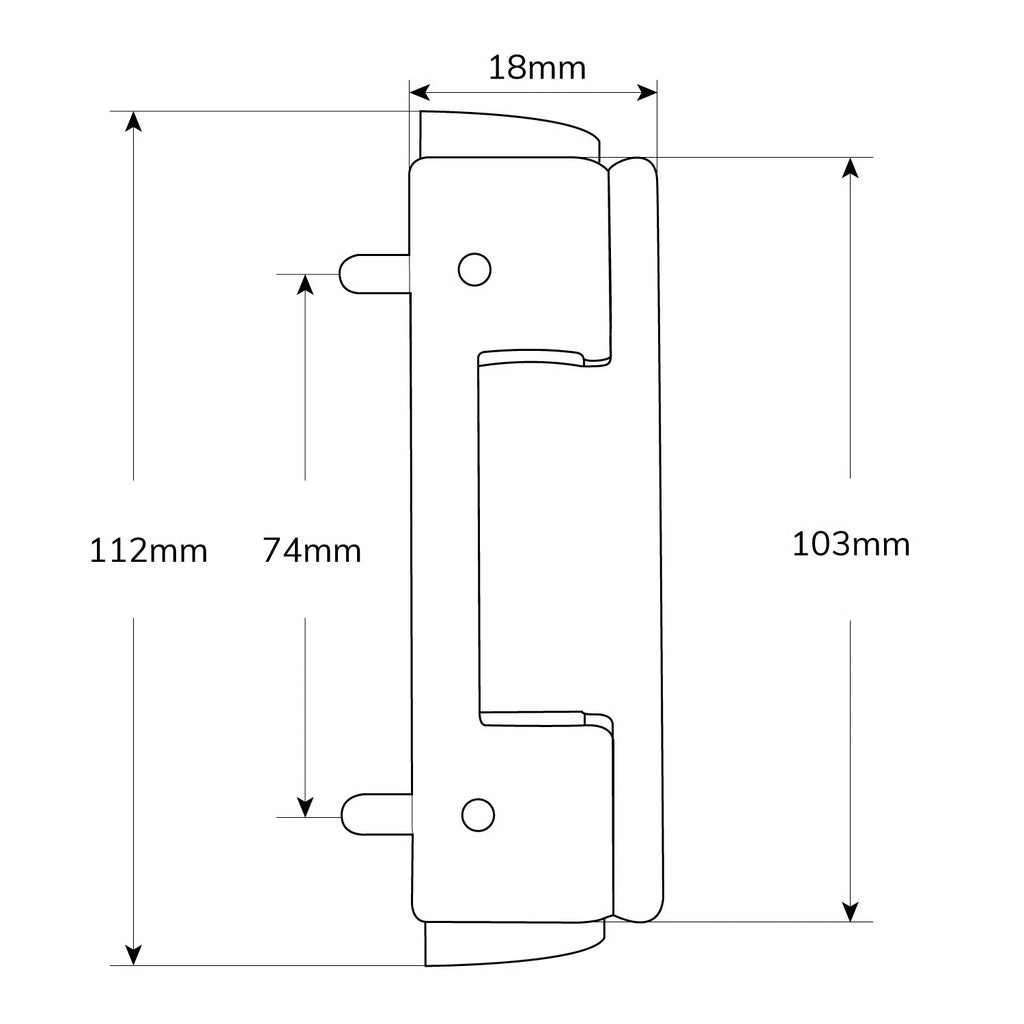

• Height: 103mm (112mm with End Caps)
• Width: 18mm
• Distance Between Pins: 74mm
• Screw Centres 1st to 4th: 90mm
• Screw Centres 2nd to 3rd: 63mm
• Salt Spray Tested: 480 Hours (BS EN 1670: Class 5)
• Cycle Tested: 200,000 cycles
• Weight Capacity: Tested with 3 hinges up to 60kg sash weight
• Adjustment: Horizontal adjustment (toe & heel) of +/- 2mm
• Compatibility: Suitable for 0-degree chamfer only; other options have been discontinued.

Upgrade your door hardware with TSS UPVC Butt Hinges for unmatched quality and performance!
