Product Overview

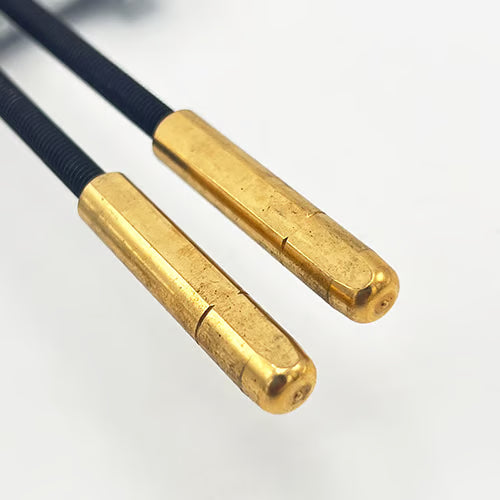

Introducing our Saracen extension rods, designed specifically for the Saracen1, 11, and 12 gearboxes. These rods utilize a Clip Fit (Bayonet Push and Twist) connection, ensuring a secure and reliable fit for your window systems.

Sash Rebate Size Compatibility

The following sash rebate sizes indicate the range of window sizes that each pair of rods will accommodate:

• S1ROD1: Suitable for sash rebate sizes of 299mm - 429mm
• S1ROD2: Suitable for sash rebate sizes of 429mm - 689mm
• S1ROD3: Suitable for sash rebate sizes of 689mm - 1049mm
• S1ROD4: Suitable for sash rebate sizes of 1049mm - 1409mm

Product Specifications

• Connection Type: Clip fit
• Compatible Gearboxes: SARACEN1, 11 & 12
• Supplied in Pairs

Rod Lengths When Fully Closed

• S1ROD1: Length of a single rod when fully closed 135mm
• S1ROD2: Length of a single rod when fully closed 210mm
• S1ROD3: Length of a single rod when fully closed 335mm
• S1ROD4: Length of a single rod when fully closed 470mm

These extension rods are the perfect solution for enhancing the functionality of your Saracen gearboxes, providing versatility and ease of installation.
