Product Overview

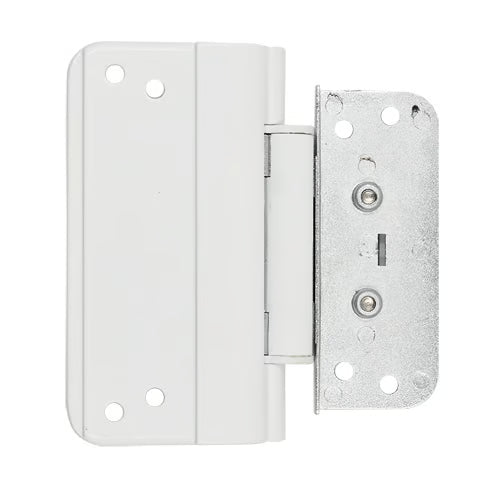

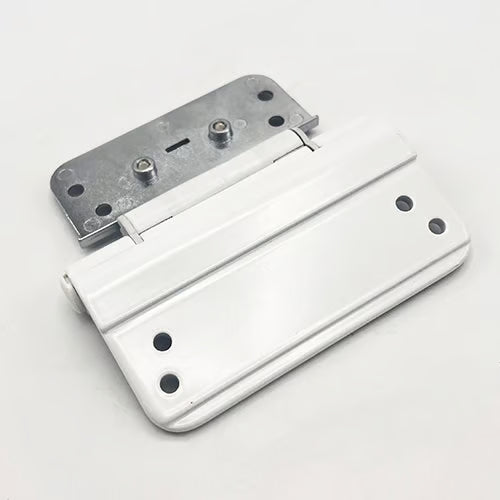

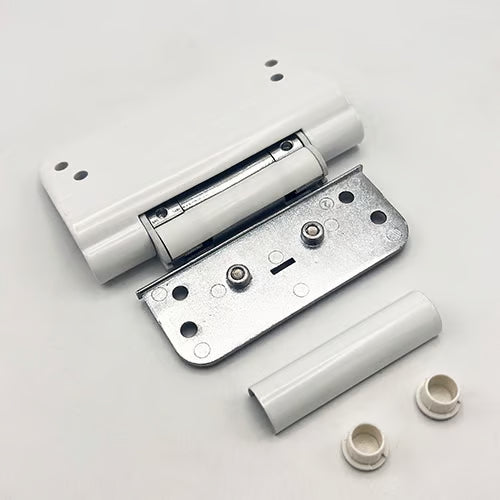

The Trojan 3D Composite Door Hinge is designed for optimal performance and durability, making it an ideal choice for composite doors. This fully 3D adjustable hinge allows for precise alignment and easy installation, ensuring your door operates smoothly and efficiently.

Key Features

• Rebated Fitment: Specifically designed for a seamless fit with composite doors.

• Weight Capacity: Each set of three hinges can support a maximum weight of 100kg, making them suitable for heavy doors.

Product Specifications

• Manufacturer: Trojan
• Colour: White

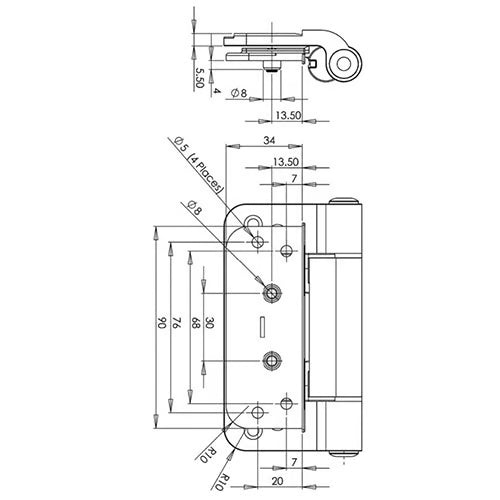

• Sash Piece Dimensions:
  • Height: 90mm
  • Width: 34mm
  • Thickness: 5.5mm
  • Corner Radius: 10mm
• Weight Capacity per Hinge: 33.3kg
• Height Adjustment: +/- 4mm
• Compression Adjustment: +/- 1.75mm
• Lateral Adjustment: + 3mm
• Corrosion Resistance: Tested to BSEN 1670 standards

This hinge combines functionality with robust construction, ensuring long-lasting performance for your composite doors.
