Product Information
This gearbox is designed for locks that were fitted to Zenith windows for many years. Although the locks are now obsolete, this gearbox offers a practical solution for repairing existing locks.
Installation Notes:
-
Screw Holes: Unthreaded; self-tapping screws are required for installation.
-
Replacement Parts: Replacement Hook Shells are available. See Part Number: CEGOHOOK.
Operation:
- Mechanism: Operates via a lift lever or double spindle.
Latch Reversal Instructions:
- Lay the multipoint lock strip on the floor with the latch and deadbolt facing left.
- Undo the 5 screws on the side of the case.
- Remove the flat positioning plate.
- Take out the latch clip.
- Twist the latch into the desired position.
- Reinsert the flat positioning plate and latch clip.
- Replace the cover and tighten the screws.

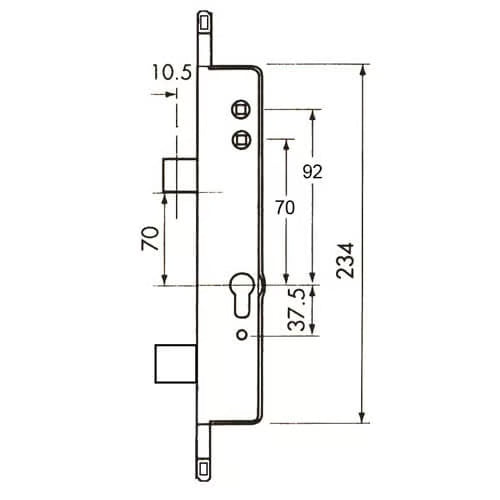

Product Specification
- Manufacturer: Zenith
-
Backset: 35mm
How to measure the backset? -
Centres PZ: 92mm/70mm
How to measure the centres? - Case Height: 234mm
- Case Width: 52mm
- Copy/Genuine: Copy
- Cylinder Type: Euro
- Handing: Not Handed
- Main Gearbox: Latch & deadbolt
- Spindle: Double 8mm
-
Operation: Lift Lever or Double Spindle Nightlatch
What is the operation? - Packaging: Supplied in singles
