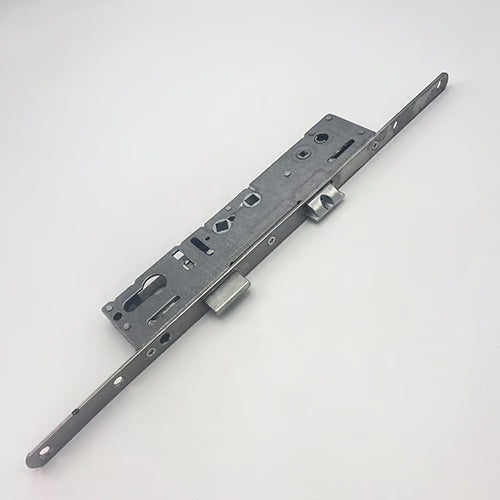

YS170 Doormaster - Lift Lever or Split Spindle 16mm Faceplate

Product Information

This Yale YS170 Doormaster lock secures properties overnight while the replacement multipoint lock is acquired.

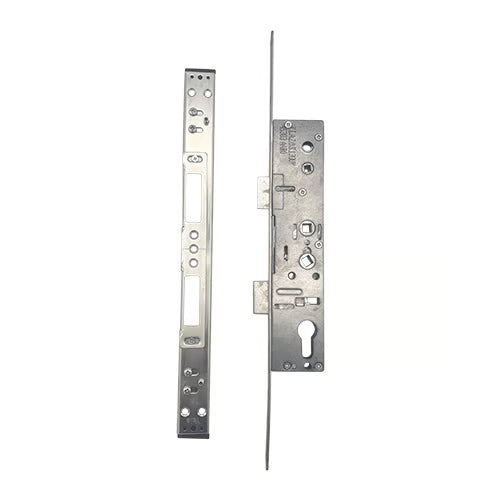

Supplied with unique adjustable keep and screws

Operation: Lift Lever or Split Spindle

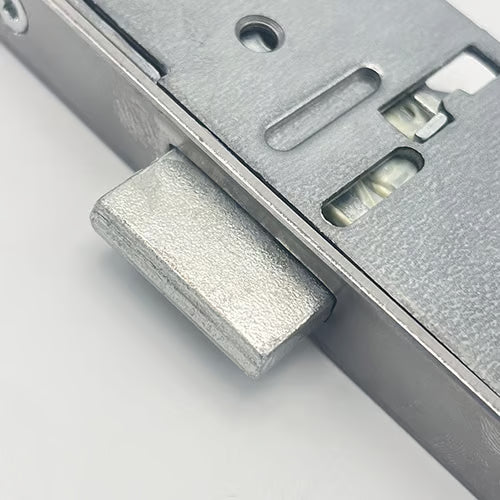

Latch reversal: Undo the screw in the latch to remove. Reverse, reinsert and replace screw

Nightlatch reversal: To reverse nightlatch function first throw locking points and look for a square hole in the side of the case adjacent to the latch. On one side there will be a green coloured part, this is currently the inside of the lock and from this side the handle will withdraw the latch. The side without the green coloured part will only withdraw the latch via the key. Remove the latch and insert a flat bladed screwdriver into the slot. Push in the screwdriver and hold down while turning 180 degrees so the green coloured part is now on the opposite side. It's very important to keep the part pushed down during turning or function will not reverse properly. The green coloured part now appears on the opposite side of the case. Replace the latch and function is now reversed.

Key Features:

• Durability: Built to withstand wear and tear, ensuring long-lasting security.

• Versatility: Suitable for various door types, making it an ideal choice for different installations.

• Ease of Use: Simple operation and straightforward installation process.

• Adjustable Components: Customizable to fit specific door requirements, enhancing compatibility.

• Enhanced Security: Designed with advanced locking mechanisms to provide superior protection.

This lock not only offers reliable security but also ensures ease of installation and operation, making it a practical choice for homeowners and property managers alike. Always consult the installation guide for detailed instructions and safety precautions.

Product Specification

Faceplate: 400mm x 16mm

Case Height: 215mm

Case Width: Backset + 15mm

Centres: 92mm

Backset: 35mm

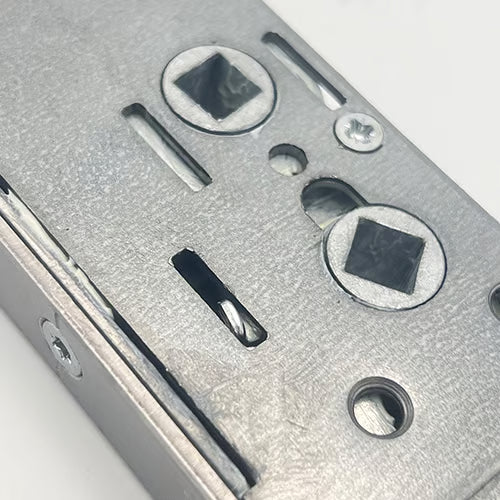

Spindle: Split 8mm

Packaging: Supplied in singles

This comprehensive specification ensures that the Yale YS170 Doormaster lock meets various installation requirements, providing both functionality and reliability for your security needs.
