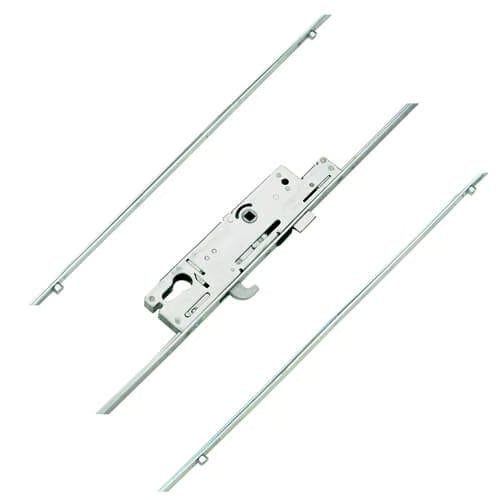

Fullex XL Multipoint Door Lock Overview
The Fullex XL multipoint door lock is engineered for maximum security and reliability, featuring a robust design that includes 4 rollers, 1 hook, and 1 latch. This lock is ideal for both UPVC and aluminium doors, ensuring a secure fit and operation.
Key Features:
-
Security Design: The XL lock incorporates three hooks, two steel anti-lift pins, and the option for either two or four roller cams, providing enhanced compression and smooth operation.
-
Double Spindle Gearbox: Supplied with a double spindle gearbox, this lock can function as a double spindle nightlatch, offering versatility in locking mechanisms.
-
Identification: Easily identifiable by the Fullex logo stamped on the faceplate and a unique cut-out in the top corner of the gearbox.
-
Extendable Design: Each XL lock is extendable at both the top and bottom, allowing for maximum flexibility. When paired with Fullex high-security shoot bolts, it meets PAS24 requirements.
-
Gearbox Specifications: Available in 35mm and 45mm backsets, the gearboxes measure 227mm high plus the backset + 15mm. They attach with three equidistant screws for secure installation.
-
Durable Construction: The hook is made from Dacromet coated A3 sintered steel, ensuring durability and resistance to corrosion, with a BS EN 1670 Grade 4 rating for 240 hours.
Operation Instructions:
To lock the door:
- Lift the handle upwards to engage the locking points.
- Turn the key to secure the locking points and main deadbolt (if applicable).
To unlock the door:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.
Additional Information:
-
Roller Functionality: Rollers assist in compressing the door against the frame, preventing dust and water ingress while also helping to maintain the door's shape.
-
Latch Reversal: For latch reversal, simply undo the screw, reverse the latch, reinsert, and replace the screw.
-
Cycle Tested: The lock has been cycle tested to 200,000 operations, ensuring long-lasting performance.
Product Specifications:
- Manufacturer: Fullex
- Backset: Select from drop-down
- Centres PZ: 92mm/62mm
- Faceplate: Select from drop-down
- Spindle Size: 8mm
- Rollers: 4
- Hooks: 1
- Latch: 1
- Main Gearbox: Latch & hookbolt
- Operation: Select from drop-down
- Spindle: Double 8mm
- Handing: Non-handed
- Distance Between Inner Locking: 719mm
- Distance Between Outer Locking: 1409mm
- Height: 2200mm
- Top Roller to Spindle: 690mm
- Bottom Roller to Spindle: 719mm
- Door Material: UPVC, Aluminium
