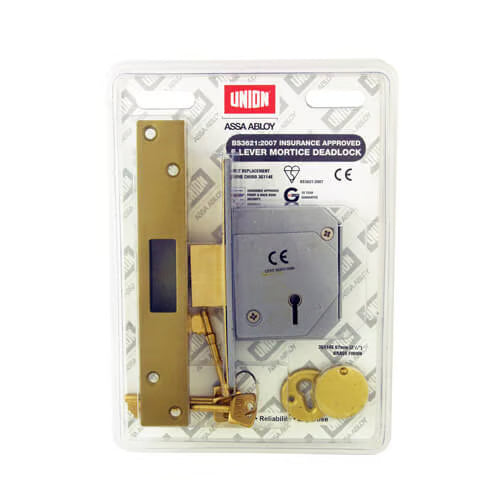

Union 3G114E British Standard 5 Lever Mortice Deadlock Visi Packed Packaging

Union 3G114E Mortice Deadlock

The Union 3G114E mortice deadlock is a trusted choice in the Union C Series range, renowned for its reliability in both residential and commercial settings. Originally produced by Chubb, this lock now features the updated Union branding while maintaining the same high-quality standards.

Key Features:

• British Standard Compliance: This lock meets the rigorous requirements of British Standard BS3621:2007, ensuring it has undergone extensive testing for security and durability.
• High Security Design: Equipped with 5 levers, anti-drill, and anti-saw features, the 3G114E provides robust protection against unauthorized access.

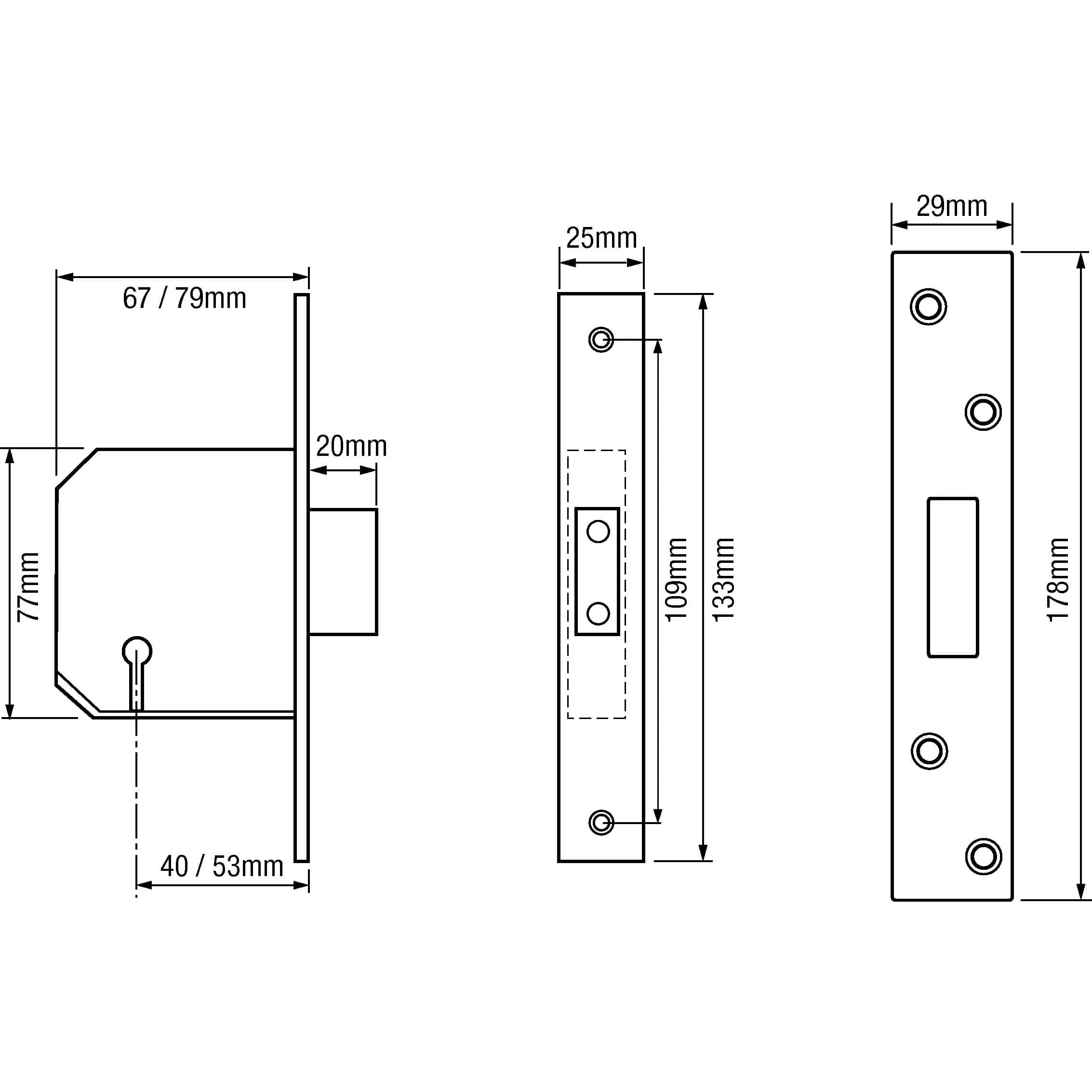

• Unique Measurements: The lock is available in standard case widths of 67mm (2.5") and 79mm (3"), with specific backset measurements of 40mm and 53mm, respectively. Refer to the line drawing for precise dimensions.
• Versatile Application: Suitable for doors up to 54mm thick, this lock can be adapted for thicker doors with extra-long keys upon request.
• Keying Options: Supplied with 3 brass keys, additional keys can be cut, and locks can be keyed alike for convenience.
• Security Features: The deadbolt throws at least 20mm for positive deadlocking, enhancing resistance against attacks. It can be locked and unlocked from either side using a key.
• Finish and Accessories: Comes with matching keyhole escutcheons and a security striking box in grey finish, complying with BS3621 standards.

Installation and Compatibility:

• Handed Design: The lock is not handed, making it suitable for left or right-hinged doors that open inwards or outwards.
• Not Suitable for Fire Doors: Please note that this lock is not designed for use on fire doors.

Union's Legacy:

With over 180 years of experience, Union is a leader in British-designed locks and door hardware. Their commitment to quality and innovation has made them a trusted name in security solutions worldwide.

For more information on British Standards for mortice locks, visit the MLA's website here.

Explore our range of associated parts, including key blanks and rebate sets, to complement your lock installation.
