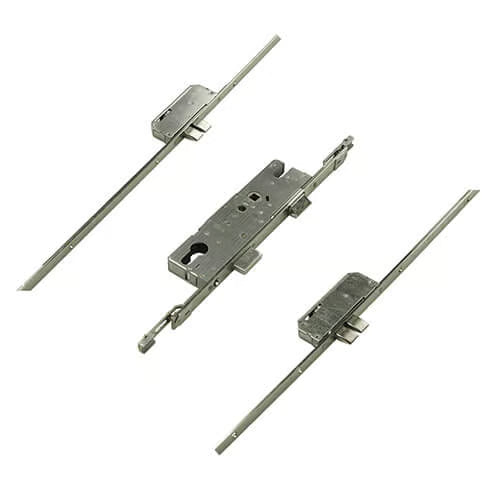

Thunderbolt Latch 5 Deadbolts Split Spindle Universal UPVC Repair Multipoint Lock

The Thunderbolt lock is a standout choice for those seeking versatility and ease of installation. Its innovative design features angled deadbolts that provide effective compression, often eliminating the need for a replacement keep when swapping out an existing Winkhaus lock.

With a 16mm wide faceplate and a 35mm backset, it's perfectly suited for UPVC and Aluminium doors, accommodating a wide range of door heights from 1300mm to 2240mm. This makes it an ideal solution for various door types, including UPVC, Aluminium, Timber, and Composite doors.

Key Features:

• Operation: Split spindle for enhanced functionality.

• Latch Reversal: Simply push in the latch, and a screw will appear at the back of the lockcase. Undo the screw to remove the latch, reverse it, reinsert, and replace the screw for easy adjustment.

• Nightlatch Reversal: The small rectangular slot next to the spindle hole contains a black roll pin. Use a flat-bladed screwdriver to roll the pin to the opposite side, allowing for a quick reversal of the nightlatch function.

The Thunderbolt lock combines security with user-friendly features, making it a reliable choice for any door installation.

The Thunderbolt lock's specifications ensure a precise fit for various door installations, enhancing both functionality and security. Here’s a detailed breakdown of the product specifications:

Product Specifications:

• Centres: 92mm
• Case Height: 185mm
• Case Depth: Backset + 17mm
• Minimum Door Height: 1680mm
• Overall Length: 2260mm
• Maximum Top Thunderbolt to Spindle: 775mm
• Minimum Top Thunderbolt to Spindle: 485mm
• Maximum Bottom Thunderbolt Spindle: 795mm
• Minimum Bottom Thunderbolt Spindle: 515mm

These specifications highlight the versatility of the Thunderbolt lock, making it suitable for a wide range of door types and ensuring optimal performance in various applications.
