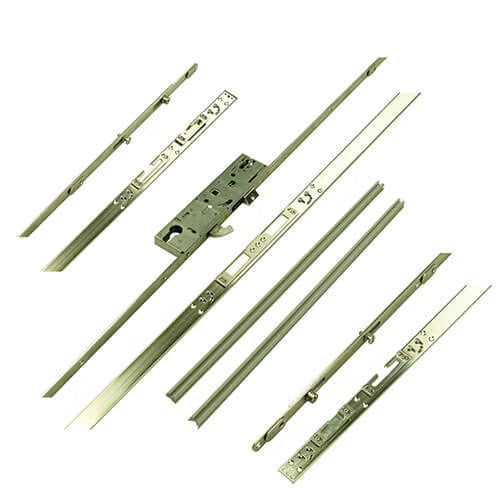

Doormaster Latch Hook 2 Rollers 2 Mushrooms Split Spindle UPVC Universal Repair Multipoint Door Lock

Introducing the Universal Yale Doormaster Lock – the ultimate solution for your multipoint locking needs!

This innovative lock seamlessly replaces 100% of 35mm and 45mm backset multipoint locks with 92mm centres available on the market. Designed for efficiency, it comes as a single piece lock with a pre-assembled keep, ensuring a quick and hassle-free installation process.

Key features include:

• 1 Piece Lock: Simplifies installation and enhances durability.

• Full Length Keep: Provides added strength and stability.

• Patented Uni-Packer System: Guarantees fast, easy, and reliable fitting.

• Fixing Screws Pack: Everything you need is included for a straightforward setup.

• Operation Options: Choose between split spindle or lift lever operation for your convenience.

• Latch Reversal: Easily reverse the latch by undoing a screw, allowing for quick adjustments.

• Nightlatch Reversal: Automatically reverses for added security and peace of mind.

Upgrade your door security with the Universal Yale Doormaster Lock – where reliability meets innovation!

Product Specification

• • Centres: 92mm
• • Case height: 216mm
• • Case depth: Backset + 17mm
• • Overall Length: 1500mm
• • Distance between outer rollers: 1318mm
• • Distance between inner mushrooms: 1118mm
