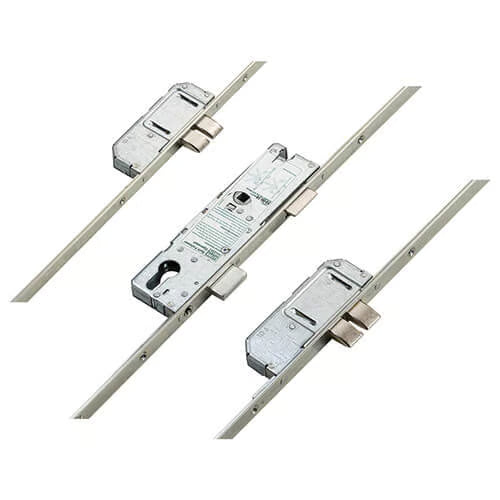

Winkhaus Thunderbolt Multipoint Door Lock
The Winkhaus Thunderbolt multipoint door lock is engineered for security and reliability, featuring 5 deadbolts and 1 latch. This innovative design includes chamfered deadbolts at both the top and bottom, setting it apart in the multipoint locking market.
Key Features:
-
Versatile Operation: Available in lift lever, split spindle, or key wind configurations, catering to various user preferences.
-
Enhanced Security: The central latch and additional twin deadbolts ensure robust protection for timber, composite, and PVCu doors.
-
Identifiable Design: Look for the Winkhaus logo and the Secured by Design logo on the faceplate. The unique chamfered twin deadbolts help in quick identification.
-
Compatibility: The Thunderbolt shares the same gearbox as the Cobra, making it easier for door manufacturers to fabricate doors with up to 50% greater fitting tolerances.
-
Standardized Routing: All Winkhaus locks maintain consistent routing details, simplifying upgrades or changes in locking operations.
Specifications:
- Manufacturer: Winkhaus
- Backset: Selectable (refer to our guide on measuring)
- Centres PZ: 92mm
- Faceplate: Selectable (refer to our guide on measuring)
- Spindle Size: 8mm
- Deadbolts: 5
- Latch: 1
- Main Gearbox: Latch & deadbolt
- Operation: Selectable
- Spindle: Single 8mm
- Handing: Non-handed
- Distance Between Inner Locking: 1490mm
- Height: 1770mm
- Top Deadbolt to Spindle: 720mm
- Bottom Deadbolt to Spindle: 770mm
Operation Instructions:
To lock the door:
- Lift the handle upwards to engage the locking points.
- Turn the key to secure the locking points and main deadbolt.
To unlock the door:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.
Additional Information:
- The Thunderbolt lock is tested to 100,000 cycles, ensuring durability and long-lasting performance.
- We offer a variety of associated products, including keeps, spindles, handles, and accessories, to complement your Winkhaus Thunderbolt multipoint door lock.
This lock is suitable for use in UPVC, aluminium, timber, and composite doors, making it a versatile choice for various applications.
