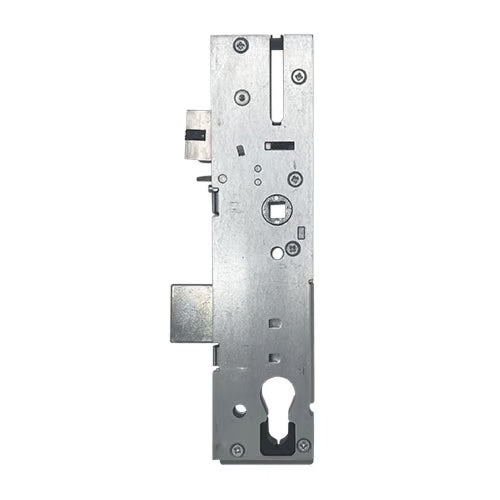

xProduct Overview: ERA Multipoint Door Lock Gearboxes
ERA multipoint door lock gearboxes are designed for versatility and security, compatible with various locking mechanisms including deadbolts, hookbolts, and Vectis gearboxes. These gearboxes are also recognized under brands such as Fab & Fix, Spartan, Westward, Duraflex, Sapa, and Saracen.
Distinctive Design and Dimensions

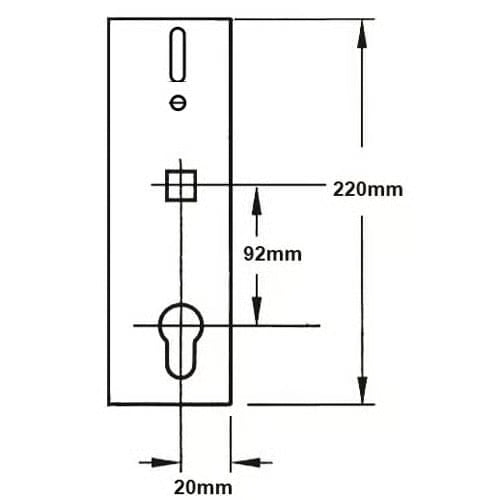

The ERA gearboxes feature a unique square design without corner cut-outs, measuring 221mm in overall length. The width is determined by the backset plus an additional 18mm. Available backsets include 30mm, 35mm, and 45mm, with all gearboxes maintaining consistent dimensions.
Locking Mechanisms
These gearboxes can accommodate various locking mechanisms:
- Classic deadbolt with standard euro cut out, Invincible cylinder cut out, or Vectis 5 lever mechanism.
- Hook bolt that throws upward.
Notably, the British Standard Fortress invincible gearbox includes hardened drill plates for enhanced security.
Interchangeability and Customization
Most ERA multipoint gearboxes are interchangeable, allowing for customization based on client needs. If a hook lock is required instead of a deadbolt or Vectis locking mechanism, we can build the lock to order.
Product Specification
Manufacturer: ERA
Backset: , 35mm or 45mm - How do I measure the backset?
To measure the backset, you need to determine the distance from the edge of the door to the center of the keyhole or cylinder. Use a tape measure to get an accurate measurement, ensuring the door is closed for precision.
Centres PZ: 92mm - How do I measure the centres?
To measure the centres (PZ), measure the distance from the center of the keyhole to the center of the handle spindle hole. This measurement is crucial for ensuring compatibility with your door hardware.
Case Height: 213mm
Case Width: Backset + 18mm
Copy/Genuine: Genuine
Cylinder Type: Euro
Handing: Not Handed
Main Gearbox: Passive lock

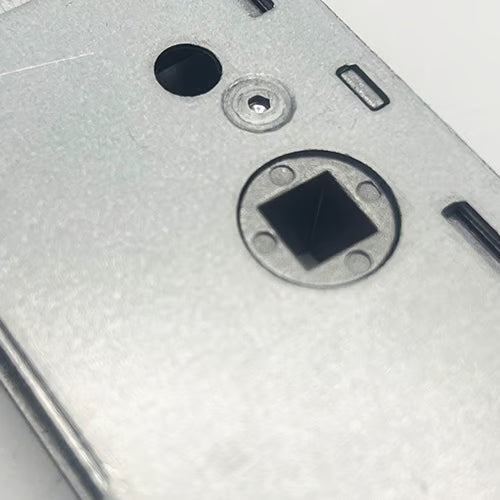

Spindle: Single 8mm
Operation: Lift Lever - What is the operation?
The lift lever operation refers to the mechanism that allows the door to be locked or unlocked by lifting the handle. This action engages the locking system, providing ease of use and enhanced security.
Packaging: Supplied in singles
