Overnight Lock – Lift Lever – 16mm Faceplate

Product Overview

The TSS Overnight Lock is an affordable and effective solution for securing properties overnight while awaiting a replacement full-length multipoint lock.

Specifications

• Backsets Available: 30mm, 35mm, & 45mm
• PZ Centres: 92mm
• Operation: Sash Lock

For contract Double Spindle Overnight Locks, use the following codes:

• TSSOVN45DS
• TSSOVN35DS

Latch Reversal Instructions

For 30mm & 35mm Backsets:

1. Unscrew the screw located on the back of the lock case, parallel to the latch.
2. Push the latch into the lock case so it sits behind the faceplate and rotate.
3. Once reversed, allow the latch to pop out into its original position in front of the faceplate, then insert and tighten the screw.

For 45mm Backsets:

1. Locate the slightly curved cut-out on the lock case, parallel to the latch.
2. Using a flat-head screwdriver, slide the pin in this cut-out toward the latch.
3. This action will push the latch forward, allowing you to rotate it 180 degrees.
4. Push the latch into the gearbox and slide the pin back to its original position.

Why Choose TSS?

TSS is committed to providing high-quality products at competitive prices. We believe that quality should not come at a premium. Our products are designed to meet trade specifications and are manufactured to high standards, ensuring they are a superior choice compared to other options on the market. Choose TSS for reliability and affordability.

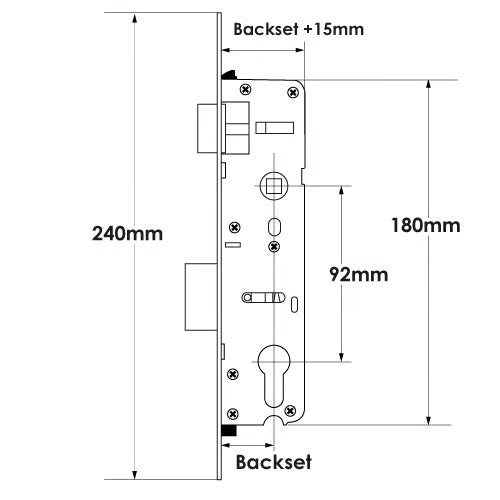

Product Specification

Faceplate: 240mm x 16mm

Case Height: 179mm

Case Width: Backset + 16mm

Centres: 92mm

Backsets Available: 30mm, 35mm & 45mm

Spindle: Solid 8mm

Additional Features

• Durable construction for long-lasting performance

• Suitable for various door types, ensuring versatility

• Easy installation process with clear instructions

• Designed to withstand wear and tear, providing peace of mind

• Compatible with standard locking mechanisms for seamless integration
