Description
Product Information

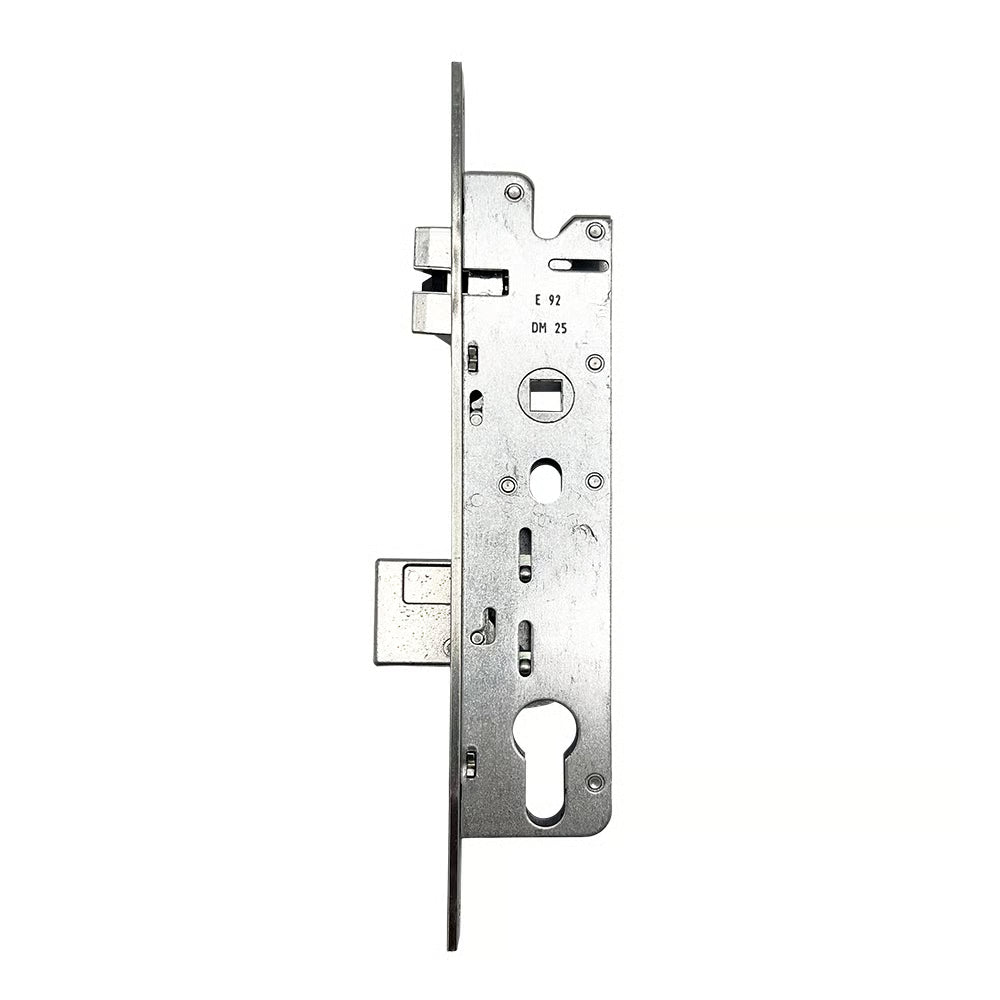

The Maco overnight lock is designed to provide secure protection for your property during the night while you await the arrival of a replacement multipoint lock. This reliable solution ensures peace of mind, knowing your premises are safeguarded.
Operation
To operate the lock, simply push the lever down. This action will retract both the latch and the deadbolt using either a key or handle. Please note that the handle does not lift up during operation, ensuring a straightforward locking mechanism.
Latch Reversal Instructions
For latch reversal, follow these steps:
- Undo the screw located at the rear of the lock case, behind the latch.
- Pull the latch from the front of the lock case while simultaneously pushing the black latch section clear to remove it.
- Reverse the latch, reinsert it, and replace the screw to secure it back in place.
Product Specification
- Faceplate Dimensions: 240mm x 16mm
- Faceplate Design: Square ends
- Case Height: 181mm
- Case Width: Backset + 16mm
- Centres: 92mm
- Backset Options: 25mm, 35mm, or 45mm (select from available options)
- Spindle Size: Single 8mm
- Packaging: Supplied individually
This Maco overnight lock is an essential addition for anyone needing temporary security solutions without compromising on quality.
