Overnight Lock - Lever Down 16mm

Product Overview

The Maco overnight lock is designed to provide temporary security for properties during the night while awaiting the installation of a replacement multipoint lock. This lock is ideal for ensuring peace of mind when immediate repairs are not possible.

Key Features

• Secure Operation: The lock features a lever-down operation, allowing the key or handle to retract both the latch and deadbolt. Please note that the handle does not lift up, ensuring a straightforward locking mechanism.

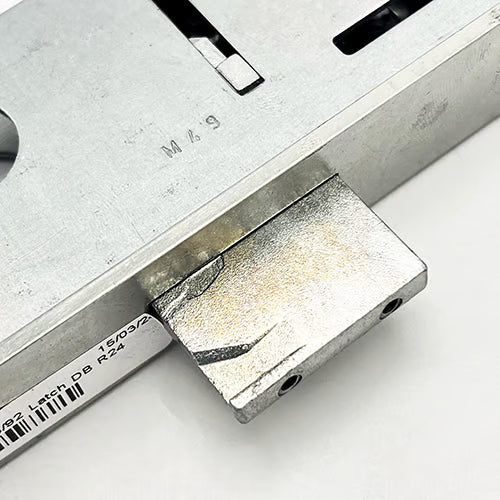

• Latch Reversal: For those needing to reverse the latch, simply undo the screw located at the rear of the lock case behind the latch. Pull the latch from the front while pushing the black latch section clear. After reversing, reinsert the latch and replace the screw for secure functionality.

Important Note: The gearbox of this lock cannot be removed, which means that replacing cases on broken mechanisms is not an option. This emphasizes the importance of timely replacement with a multipoint lock to maintain security.

Ensure your property remains secure with the Maco overnight lock until a permanent solution is in place.

\n\n

Product Specification

Faceplate: 240mm x 16mm

Faceplate has square ends

Case Height: 181mm

Case Width: Backset + 16mm

Centres: 92mm

Backset: 25, 35mm or 45mm (select from options)

Spindle: Single 8mm

Packaging: Supplied in singles

\n\n

This comprehensive specification ensures that the Maco overnight lock fits seamlessly into your existing setup, providing both functionality and security. Each component is crafted with precision to guarantee durability and ease of installation.

Make sure to choose the appropriate backset option that aligns with your door's requirements for optimal performance. The single spindle design simplifies the locking mechanism, making it user-friendly while maintaining robust security features.

Whether you're replacing an old lock or installing a new one, the Maco overnight lock is designed to meet your needs effectively.
