Description

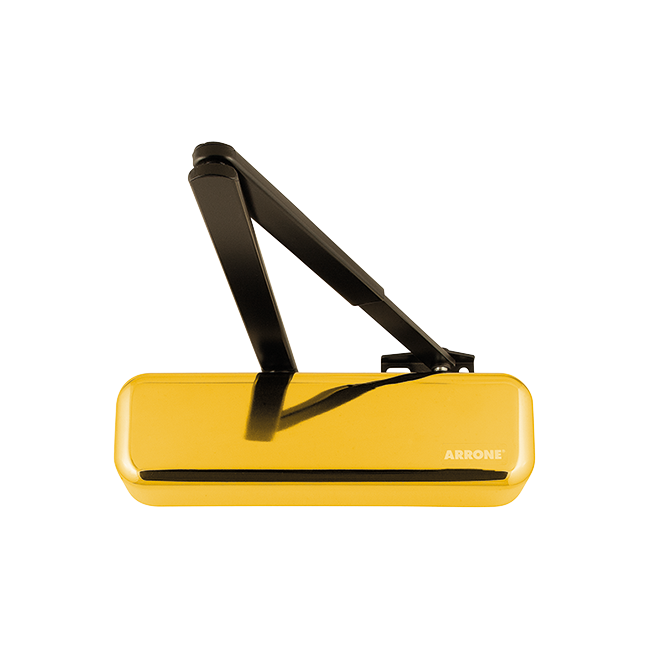

Product Overview: Mini Designer Door Closer
Power Size: Adjustable from EN 2 to EN 4 via template.
Functionality: Designed for closing and latching mechanisms.
Cover Design: Featuring a sleek mini designer cover.

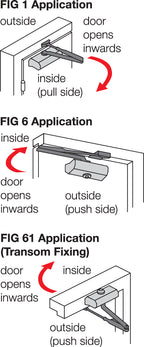

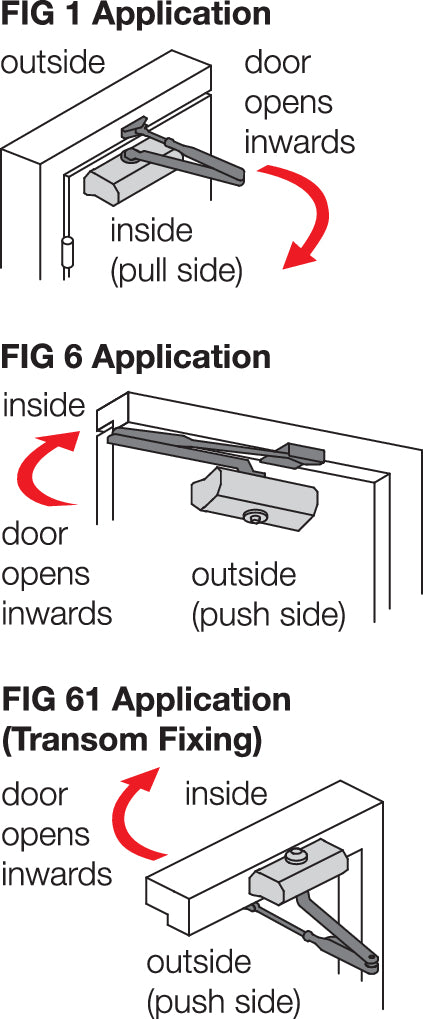

Arm Application: Compatible with fixing positions.
Testing and Compliance: Successfully type tested for conformity to all requirements of BS EN 1154:1997.
Tested Specifications:
- Door Width: 950-1,100 mm
- Door Weight: 60-80 kg
Classification Ratings:
- For Fig 1/Fig 61: 3 | 8 | 4/2 | 1* | 1 | 3
- For Fig 6: 3 | 8 | 3 | 1* | 1 | 3
Fire Resistance:
Tested to BS EN 1634-1, suitable for 30, 60, and 120-minute timber fire doors.
Certifications:
- CE Certification: AD0095, DOP HUK0025
- Certifire: CF603
Arm Type: Scissor arm with a fixed joint, flat form, and adjustable features.

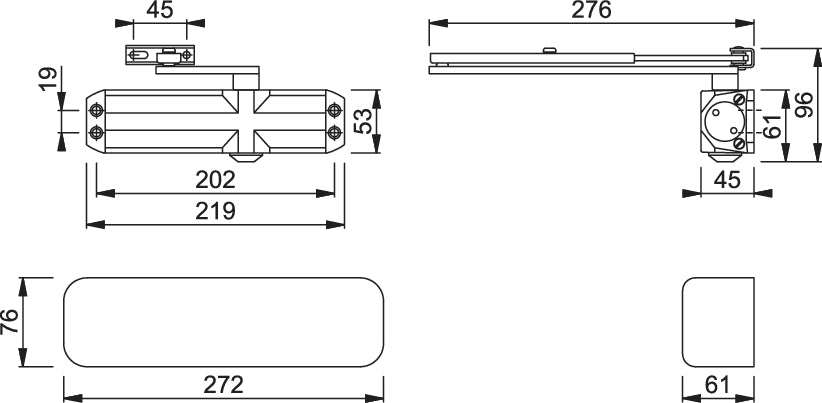

Mechanism Dimensions and Fixing Centers:
- Dimensions: 219 x 53.4 x 45 mm
- Fixing Centers: 202 x 19 mm
Fixings: Designed for timber doors.
Mechanism Function: Template adjustment for closing and latching speed.
Opening Angle: Maximum opening angle of 105°.
Commodity Class: Surface overhead door closing devices.
Tested Door Specifications:
- Width: 1100 mm
- Weight: 80 kg
Mechanism Type: Rack & pinion system.
Power Size Range: 2 to 4.
Shape: Mini-Designer.
Door Type: Suitable for wooden doors.
