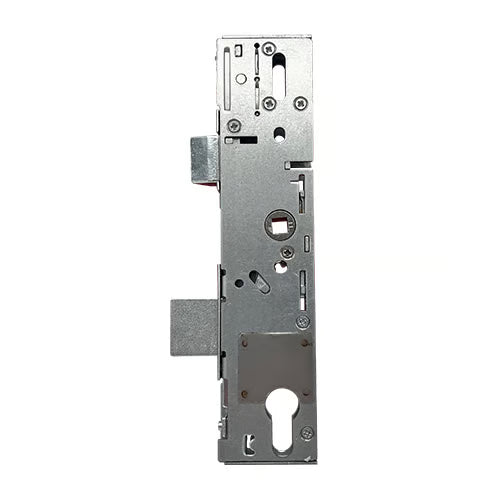

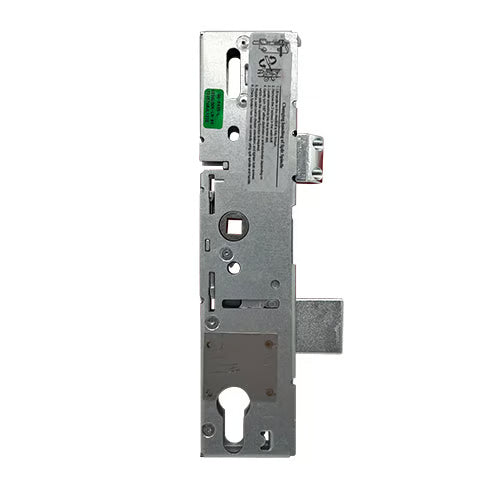

Multipoint Gearbox - Lift Lever or Split Spindle

Product Overview: Anglian Multipoint Door Lock Gearboxes

Anglian multipoint door lock gearboxes are designed with a unique square shape, featuring no corner cut-outs. Their dimensions are as follows:

• Overall Length: 221mm
• Width: Backset measurement plus 18mm

Backset Options:

• Available in 35mm or 45mm backsets.

Key Features:

• Latch Height: 24mm (with two distinctive screws)
• Deadbolt Height: 30mm
• Distance Between Latch and Deadbolt: 61mm
• Screw Configuration: Secured to the faceplate with four screws, which is atypical for multipoint locks. The measurements between screw holes are:
  • First to second: 37mm
  • Second to third: 85mm
  • Third to fourth: 43mm

Important Measurement Note: When measuring the backset, account for an additional 2-3mm for the faceplate. Therefore, a 35mm backset gearbox will measure approximately 32mm when not attached to the strip.

Operation:

• Locking Mechanism: Lift lever or split spindle.

Latch Reversal Instructions:

1. Unscrew the latch to remove it.
2. Reverse the latch and reinsert it.
3. Replace the screws.

Nightlatch Split Spindle Reversal:

1. Remove the latch to access a small screw.
2. Use a small bladed screwdriver to turn the screw 180 degrees.
3. Return the latch to its correct position.

Locking the Door:

1. Close the door to automatically engage the latch.
2. Lift the handle to engage additional locking points.
3. Throw the deadbolt and secure the system by turning the key (note: on some brands, lifting the handle will throw the deadbolt).

Unlocking the Door:

1. Unlock the system by turning the key.
2. Push the handle down to disengage the locking points.
3. A further quarter turn of the key will retract the latch.

Product Specification

Manufacturer: Anglian

Backset: 30mm, 35mm or 45mm - How do I measure the backset?
To measure the backset, place a ruler or measuring tape from the edge of the door to the center of the keyhole. Ensure you account for any additional thickness from the faceplate, typically adding 2-3mm to your measurement.

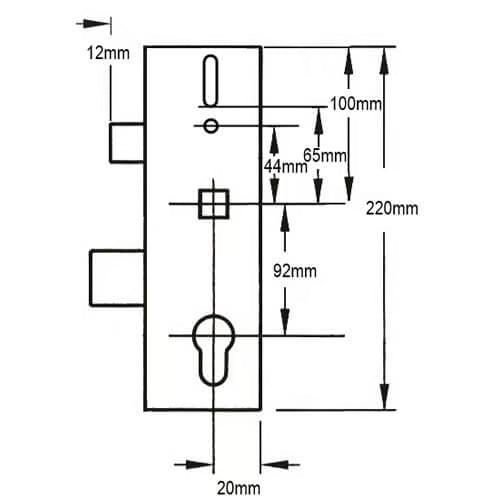

Centres PZ: 92mm - How do I measure the centres?
To measure the centres, measure the distance from the center of the keyhole to the center of the handle hole. This measurement is crucial for ensuring proper alignment and functionality of the locking mechanism.

Case Height: 220mm

Case Width: Backset + 20mm

Deadbolt Width: 6mm

Copy/Genuine: Genuine

Cylinder Type: Euro

Handing: Not Handed

Main Gearbox: Latch & deadbolt

Spindle: Split 8mm

Operation: Lift Lever or Split Spindle Nightlatch - What is the operation?
The operation involves either lifting the lever to engage the locking mechanism or using a split spindle nightlatch, which allows for independent operation of the handle and the lock. This means you can lock or unlock the door without needing to turn the handle, providing added convenience and security.

Packaging: Supplied in singles
