Product Information

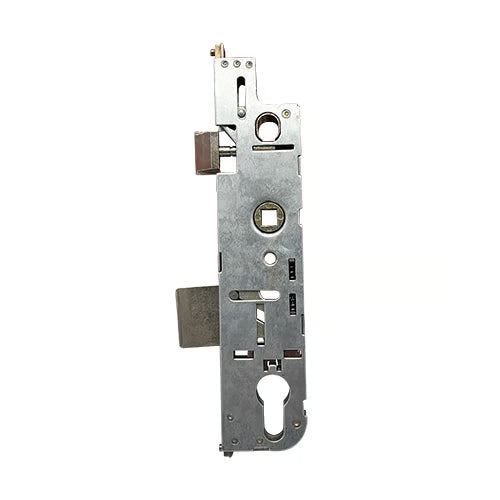

The DGS gearbox is designed for durability and ease of use, featuring a latch and deadbolt mechanism. It measures 208mm in height (excluding the fixing lugs) and has a width of backset + 19mm.
Key dimensions include:
- Latch Height: 32mm
- Deadbolt Height: 35mm
- Gap from Latch to Deadbolt: 54mm
Installation is straightforward, with the gearbox fixed to its faceplate using three screws. The screw placements are as follows:
- Top to Middle Screw Distance: 108mm
- Middle to Bottom Screw Distance: 92mm
The follower measures 8mm, with the surrounding thickness varying between 30mm (thicker) and 35/45mm (thinner).
When measuring your backset, always allow an additional 2mm if the gearbox is removed from the faceplate.
Functionality
The DGS gearboxes are exclusively available in a lift lever function. Note that the split spindle and fast locking functions are now obsolete; if you require either of these, a new style full-length lock will be necessary.
Operation Instructions
To lock the door:
- Lift the handle upwards to engage the locking points.
- Secure the locking points and main deadbolt (if applicable) by turning the key.
To unlock the door:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.
Product Specification
- Manufacturer: DGS
- Backset Options: 30mm, 35mm, 40mm, or 45mm
- Centres PZ: 92mm
- Case Height: 208mm
- Case Width: Backset + 19mm
- Copy/Genuine: Copy
- Cylinder Type: Euro
- Handing: Not Handed
- Main Gearbox: Latch & Deadbolt
- Spindle: Single 8mm
- Operation: Lift Lever
- Packaging: Supplied in singles
For any further inquiries on measuring backset or centres, or understanding the operation, feel free to reach out!
