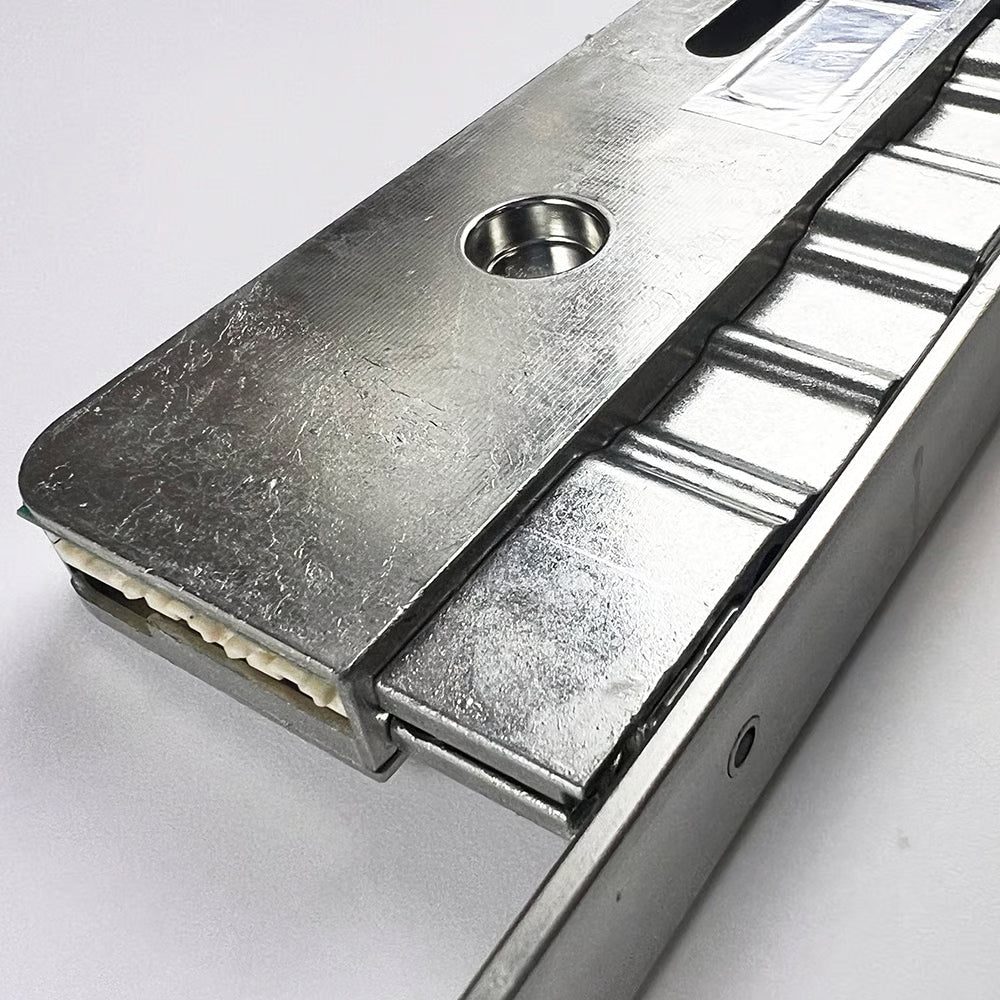

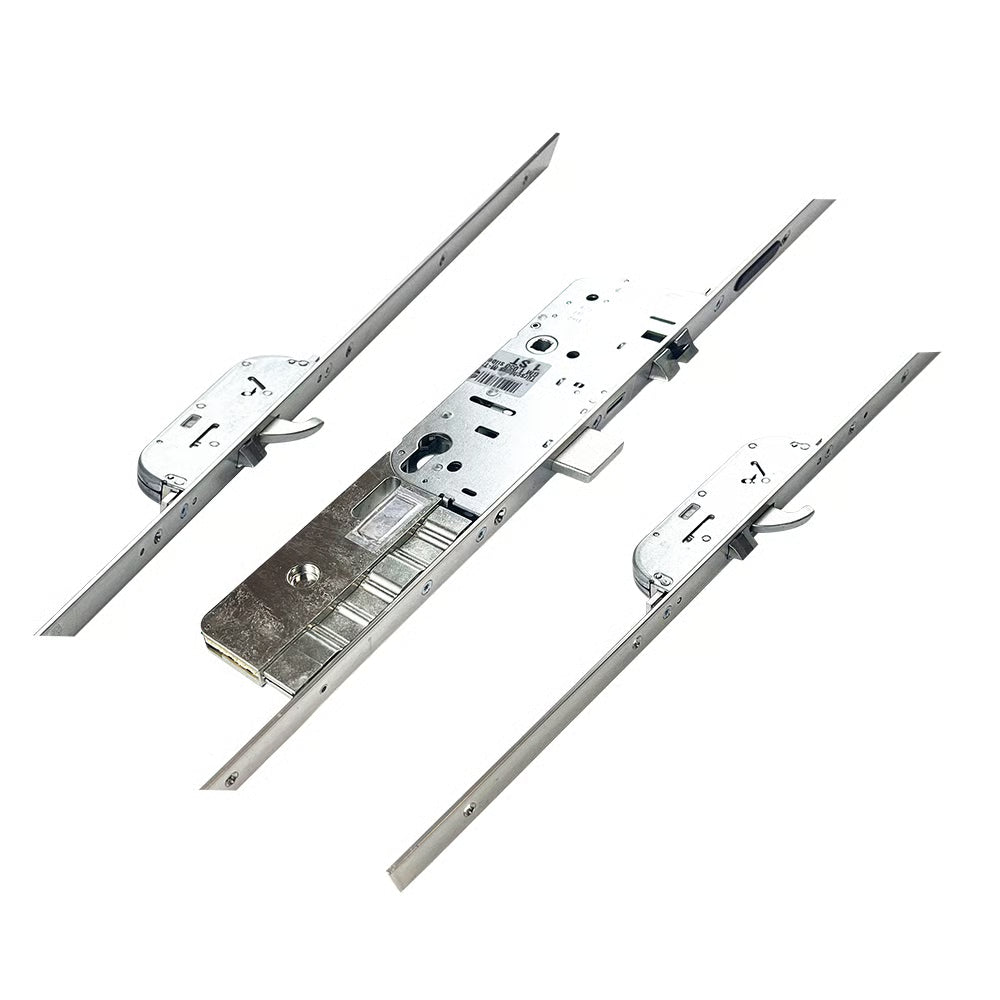

M-TS Latch & Deadbolt 2 Hooks 2 Anti Lift Bolts Flat 20mm Faceplate Electric Multipoint Door Lock

Product Overview

The Maco M-TS Electric Multipoint Door Lock is engineered for high security and reliability, making it an ideal choice for modern entrance doors. This advanced locking system features a robust design with 2 Hooks, 2 Anti-Lift Bolts, 1 Deadbolt, and 1 Latch, all mounted on a sleek 20mm flat faceplate with square ends. With a total height of 2200mm, it accommodates both 45mm and 55mm backsets, making it suitable for PVC, composite, and timber doors that require a slimmer profile.

Key Features

• Mechanical Strength & Electric Functionality: The M-TS lock seamlessly combines mechanical strength with electric latch retraction, allowing for easy integration with intercoms, access control systems, or smart home setups. It ensures full mechanical locking through its hooks, anti-lift bolts, and central deadbolt, providing peace of mind even during power outages.

• Versatile Design: Identified by its 1-piece strip and distinctive pairing of hooks and anti-lift bolts, the M-TS lock utilizes a single 8mm spindle with non-handed operation, making it adaptable for both left and right opening doors without any modifications. Available in backsets of 45mm or 55mm, it meets various installation needs.

Locking Points & Security Features

The M-TS model is equipped with:

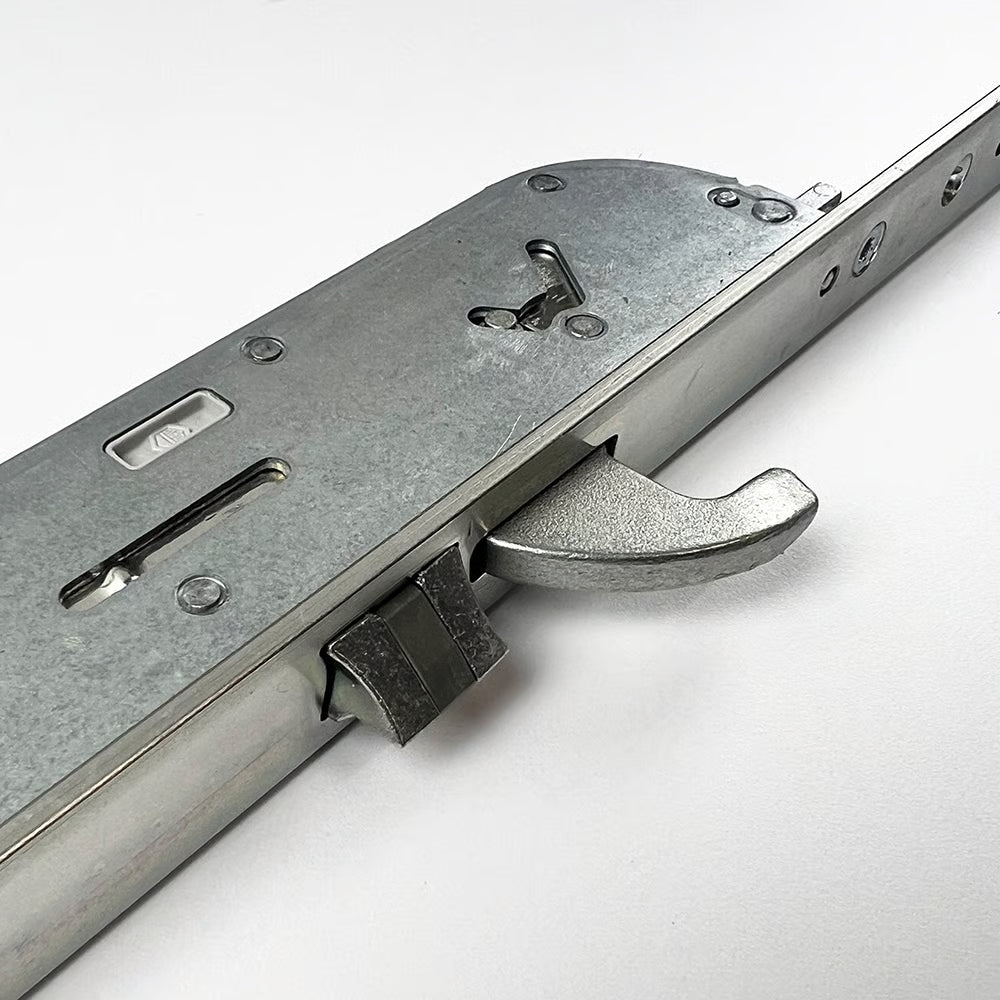

• 2 Uni-directional Hooks: These hooks engage securely into their keeps, compressing the door against the frame to resist forced separation.

• 2 Anti-Lift Bolts: Strategically positioned near the hooks, these bolts prevent vertical lifting or jamming of the door, enhancing overall security.

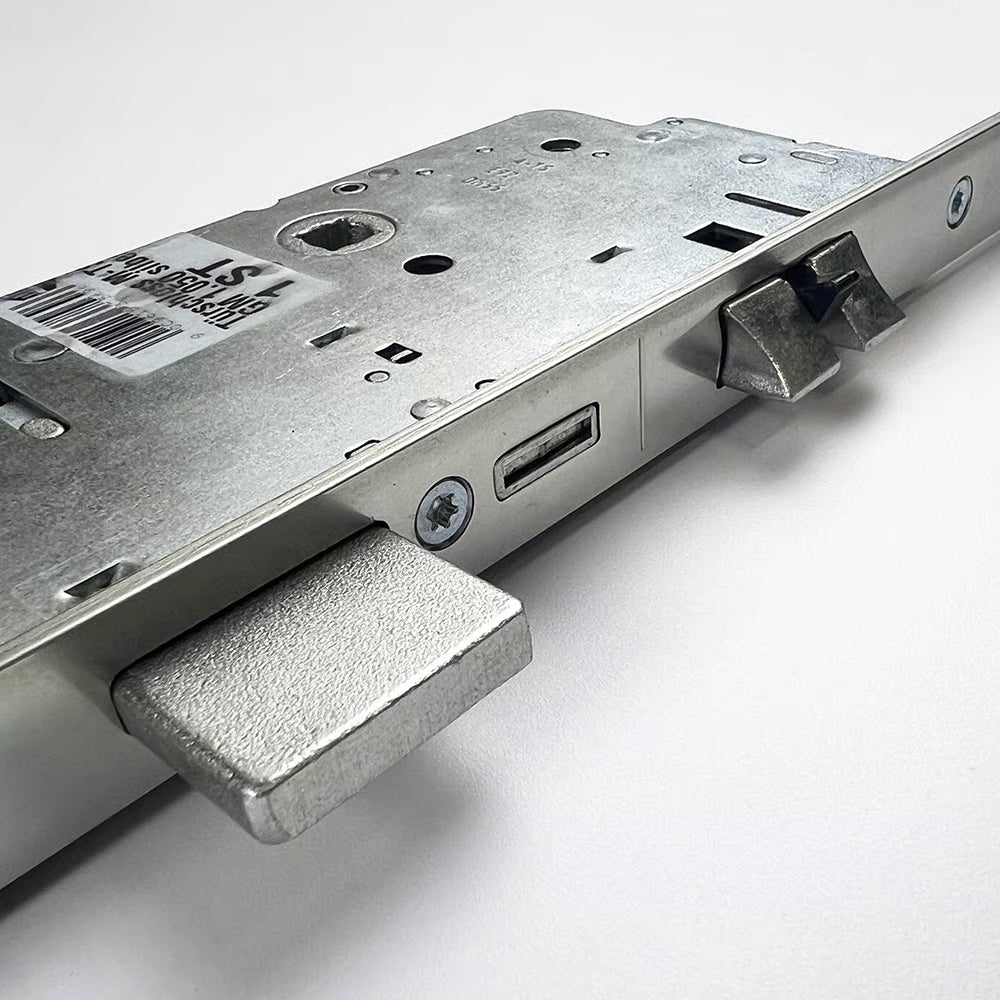

• 1 Central Deadbolt & Latch: The deadbolt serves as the primary mechanical lock, while the latch retracts electrically, allowing for hands-free or remote entry.

Important Note: The anti-lift bolts require specific compatible keeps due to their proximity to the hooks, ensuring improved protection against physical attacks.

Product Specification

• Manufacturer: Maco
• Backset Options: 45mm or 55mm
• Centres (PZ): 92mm
• Operation: Electric
• Spindle: Single 8mm
• Handing: Non-handed
• Hooks: 2
• Anti Lift Bolts: 2
• Faceplate: Flat 20mm – Square Ends
• 1, 2 or 3 Piece Strip: 1 piece
• Distance Between Outer Locking Points: 1490mm
• Shootbolt Attachments: No
• Overall Lock Height: 2200mm
