xProduct Overview: VERSA LITE Multipoint Lock

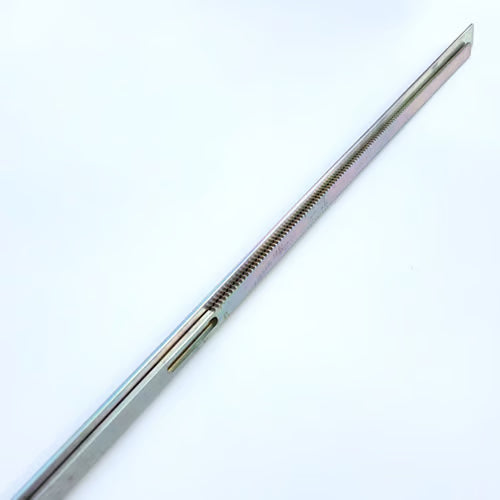

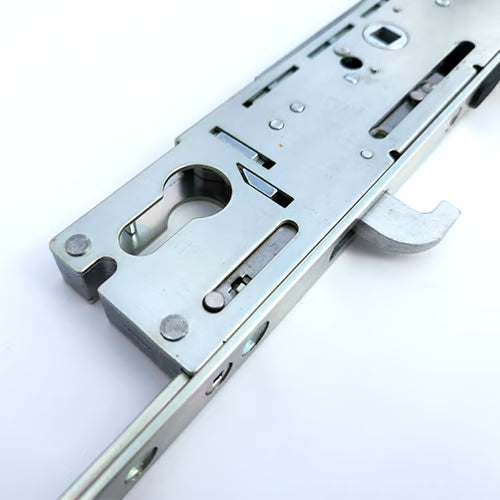

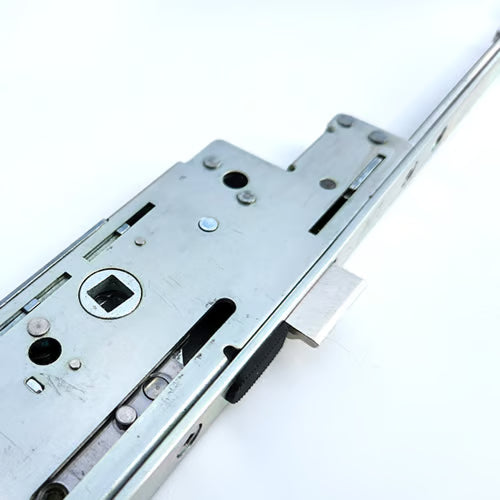

The VERSA LITE multipoint lock is an innovative UPVC repair lock designed for efficiency and versatility. This lock system consists of three main components: a central section with a faceplate, and two extension pieces. Each extension piece features 300mm of serrated teeth, allowing for easy cropping to adjust hook centers between 1033mm and 1492mm.
Compact Design for Easy Installation
With hook cases measuring just 55mm in height and 25mm in depth, the VERSA LITE lock eliminates the need for extensive door modifications on-site, making installation quick and hassle-free.
Enhanced Security Features

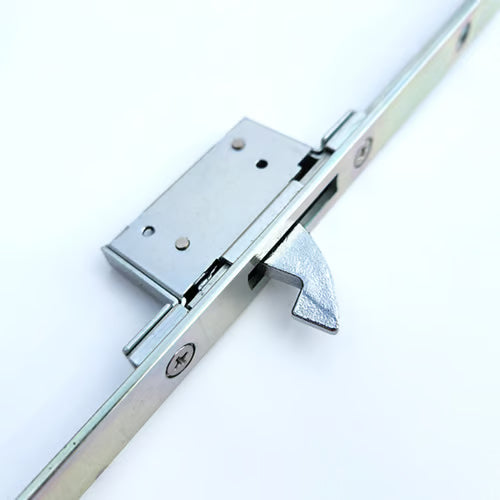

This multipoint lock includes three hooks—one on each extension piece and an additional hook on the lock case—providing superior security. Notably, these hooks are compatible with existing deadbolt keeps, allowing for seamless integration with current setups.
Adjustable Keeps for Custom Fit
Included with the lock are two hook keeps and a center keep, both of which are fully adjustable to accommodate any door profile without the need for additional packers.
Versatile Backset Options
The VLITE MPL is available in two backsets, offering either a split spindle or double configuration: 35/92, 35/92/62, 45/92, and 45/92/62.
Finishing Touches
To ensure a polished look, the lock comes with cover plates and a generous supply of repair screws, enhancing both aesthetics and functionality.
Latch Reversal Made Simple
Reversing the latch is straightforward: simply undo the screw, reverse the latch, reinsert, and replace the screw.
Related Products
For compatible shootbolts, please refer to the related products section on this page.
VERSA - Your Repair Solution
At VERSA, we are committed to providing you with the tools you need to complete repairs efficiently in a single visit. Our retrofit solutions are designed to save you time and streamline your workflow.
Our extensive range of UPVC door and window repair products can be easily adjusted to meet the specific requirements of each job, allowing you to minimize costs and reduce the need for a large inventory of specialized items.
With VERSA products, you can confidently tackle emergency replacements without the risk of delays due to parts shortages.
Say Goodbye to Inventory Hassles
- NO MORE RISK of job cancellations while waiting for parts.
- NO MORE STRUGGLE in finding the exact replacement.
- NO MORE CLUTTER in your van with unnecessary stock.
Choose VERSA for reliable, efficient, and versatile repair solutions!
Product Specification
Available in 35mm or 45mm backsets
Flat 16mm faceplates with square ends
Available as either a single split spindle version or a double spindle version
Centres for the split spindle version are 92mm, and centres for the double spindle version are 92mm/62mm
Distance between hooks: Maximum 1492mm, Minimum: 1033mm
Case Height: 226mm
Case Depth: Backset + 16mm
Maximum top hook to spindle: 724mm
Minimum top hook to spindle: 445mm
Maximum bottom hook to spindle: 776mm
Minimum bottom hook to spindle: 479mm
Non-handed, reversible latch

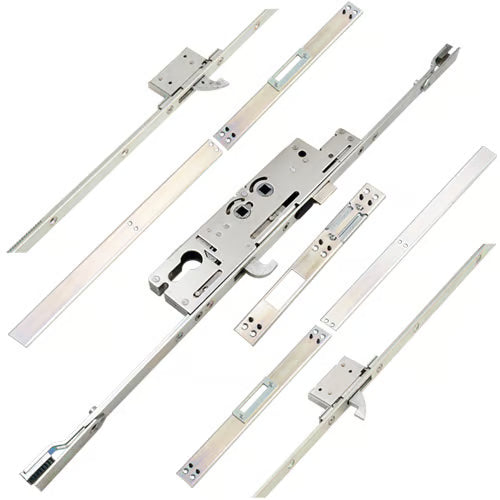

Supplied with: Central gearbox section, x2 hook/roller extension pieces, x1 centre keep, x2 hook keeps
Supplied in single tubes.
