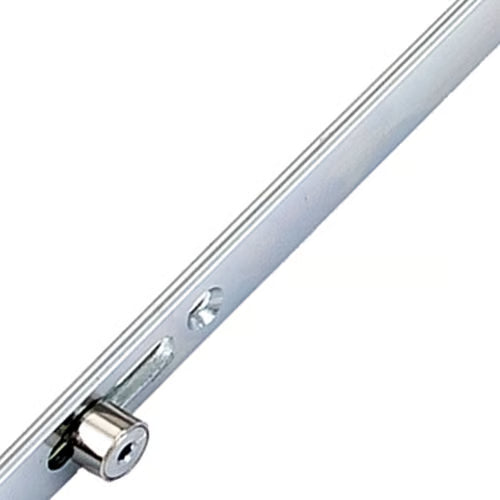

Timber/Composite Affinity Bastion Latch Deadbolt 4 Hooks Double Spindle Multipoint Door Lock

Product Overview: Avocet Multipoint Door Lock

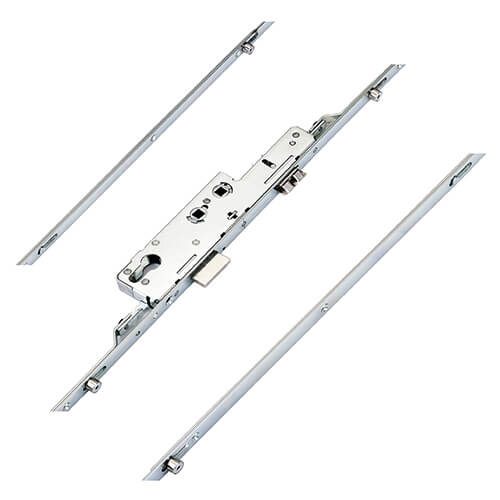

The Avocet multipoint door lock is a robust security solution featuring 3 deadbolts and 1 latch, designed to enhance the safety of your home or business.

Identification Features

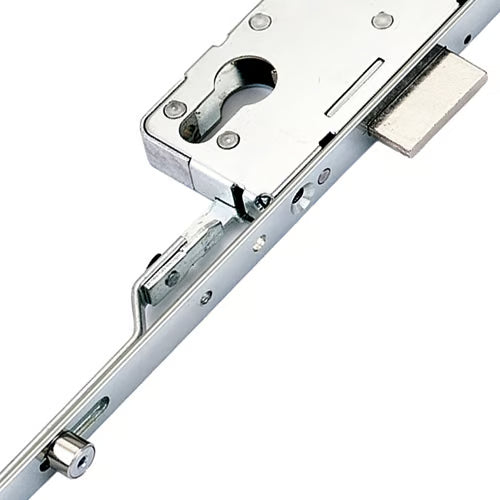

Once removed from the door, Avocet locks are easily identifiable. Look for faceplates stamped with the Avocet logo, although older models may display the "WMS" logo. The uniquely shaped gearboxes, with a cut-out extending below the latch, further assist in identification.

Configurations and Materials

Originally, Avocet locks came in various configurations, including hooks, rollers, and deadbolts. The earlier models were made from yellow passivated steel, giving them a distinctive brassy appearance. Recent updates have introduced faceplates made from stainless steel or a Trivalent silver finish, marking a shift in design.

Replacement Options

As the locks transitioned from yellow passivated to silver, many variations were phased out. However, notable exceptions like the 2 roller and 2 mushroom locks remain available, along with a shorter version of the 3 deadbolt lock suitable for caravans. For assistance in finding the best replacements, please reach out to us.

Sash Lifter Device

Some Avocet locks include a "sash lifter" device, designed for optimal sash to frame alignment. Since these devices are no longer available, we recommend replacing locks with the standard version.

Backset Measurements

Most Avocet locks feature a 35mm backset, while the Affinity Bastion lock, designed for composite doors, has a 45mm backset.

Lock Functionality

Current Avocet multipoint locks are available in a double spindle nightlatch configuration, with centres at 62mm and 92mm. If nightlatch functionality is unnecessary, the lock can still operate as a lift lever version using the top spindle.

Gearbox Specifications

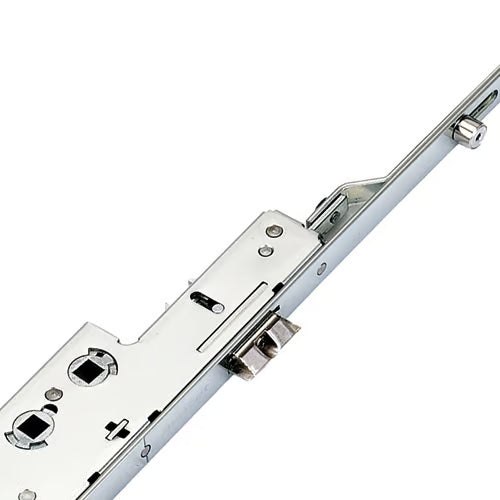

Avocet gearboxes measure 218mm high plus the backset (add 15mm). The unique large cut-out in the top corner aids in handle fitment, with screws positioned above the lever.

Deadbolt Features

Avocet deadbolts feature a 20mm throw made from nickel-plated brass, with a chamfered design that distinguishes them from the square design of Avocet hook cases.

Operation Instructions

To lock the door:

1. Close the door to engage the latch automatically.
2. Lift the handle to engage the locking points.
3. Turn the key to lock the system.

To unlock the door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

Corrosion Resistance

Avocet locks are tested to BSEN1670:2007 Grade 4 and can withstand 100,000 cycles, ensuring durability and reliability.

Associated Products

We offer a range of associated products for Avocet multipoint door locks, including keeps, spindles, handles, and accessories, suitable for both UPVC and aluminium doors.

For any inquiries or assistance, feel free to contact us!

Product Specification

Manufacturer: Avocet

Backset: Select from drop-down - How do I measure the backset?
To measure the backset, take a tape measure and measure the distance from the edge of the door to the center of the lock cylinder. This measurement is crucial for ensuring a proper fit.

Centres PZ: 92mm/62mm - How do I measure the centres?
To measure the centres, measure the distance between the center of the keyhole and the center of the handle hole. This will help you determine the correct PZ measurement for your lock.

Faceplate: Select from drop-down - How do I measure the faceplate?
To measure the faceplate, measure the width and height of the existing faceplate on your door. Ensure to note the thickness as well, as this can affect compatibility with your new lock.

Spindle Size: 8mm

Deadbolts: 3

Latch: 1

Main Gearbox: Latch & deadbolt

Operation: Select from drop-down - What is the operation?
The operation refers to how the lock engages and disengages. Typically, this involves turning the key or lifting the handle to activate the locking mechanism.

Spindle: Double 8mm

Handing: Non handed

Distance Between Inner Locking: 1400mm

Height: 1565mm

Top Deadbolt to Spindle: 685mm

Bottom Deadbolt to Spindle: 715mm

Door Material: UPVC, Aluminium

For any further assistance or clarification on measurements, feel free to reach out!
