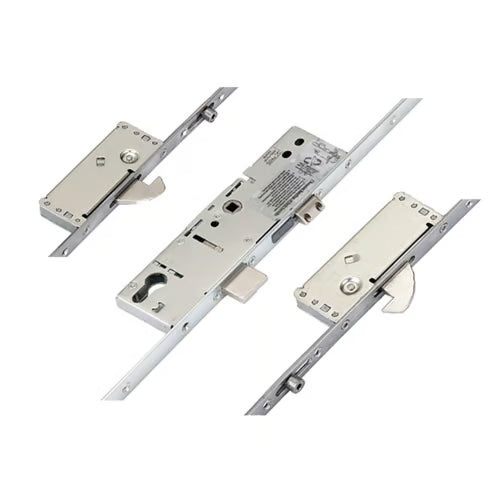

Product Overview: ERA Deadbolt Multipoint Door Lock
The ERA Deadbolt multipoint door lock is engineered for security and reliability, featuring a robust design with 2 hooks, 1 deadbolt, and 1 latch. This lock is a popular choice in the UK, known for its versatility and ease of identification.
Identifying Your ERA Lock
Recognizing an ERA multipoint door lock can be straightforward, but be cautious of rebranded versions. Many door and window companies utilize ERA locks, often stamping their faceplates with various brand logos, including Surelock, Saracen, and others.
A key feature to look for is the holdback snib on the faceplate, typically grey for deadbolt and hook bolt locks, and blue for Vectis locks. However, some brands may have altered the snib color to black or green.
Mechanism and Gearbox Details
Most ERA multipoint locks utilize a split spindle mechanism, simplifying replacements by focusing on one locking function. Notably, the gearboxes are distinctive with a square design and no corner cutouts, measuring 221mm in length. They are available in backsets of 30mm, 35mm, or 45mm, with consistent dimensions across all models.
Locking Arrangements
ERA multipoint locks offer two hook locking arrangements:
-
Standard Hook: Compact design ideal for tight routing during replacements.
-
Security Steel Hook: Larger hook case requiring minor adjustments to the door for installation.
Both hooks operate bi-directionally, enhancing security by throwing the top hook upwards and the bottom hook downwards.
Deadbolt Features
The deadbolt, referred to as a linear bolt by ERA, features an 18mm throw and is chamfered to secure the door against the frame. These locks are predominantly used in timber and composite doors.
Operation Instructions
To lock the door:
- Lift the handle to engage the locking points.
- Turn the key to secure the locking points and main deadbolt.
To unlock the door:
- Turn the key to disengage the system.
- Push the handle down to retract the latch.
Compliance and Testing
The ERA Deadbolt multipoint door lock meets BS EN 1670:2007 Grade 4 Corrosion Resistance standards (240 hours) and has been endurance tested for 50,000 cycles. It is designed to comply with PAS24:2012 requirements for enhanced security.
Additional Products
We also offer a variety of associated products for the ERA Deadbolt multipoint door locks, including keeps, spindles, handles, and accessories, ensuring you have everything needed for installation and maintenance.
This lock is suitable for various applications, including UPVC, aluminium, timber, and composite doors, making it a versatile choice for any security needs.
Product Specification
Manufacturer: ERA
Backset: Select from drop-down - How do I measure the backset?
Centres PZ: 92mm - How do I measure the centres?
Faceplate: Select from drop-down - How do I measure the faceplate?
Spindle Size: 8mm
Hooks: 2
Deadbolts: 1
Latch: 1
Main Gearbox: Latch & deadbolt
Operation: Select from drop-down - What is the operation?
Spindle: Split 8mm
Handing: Non handed

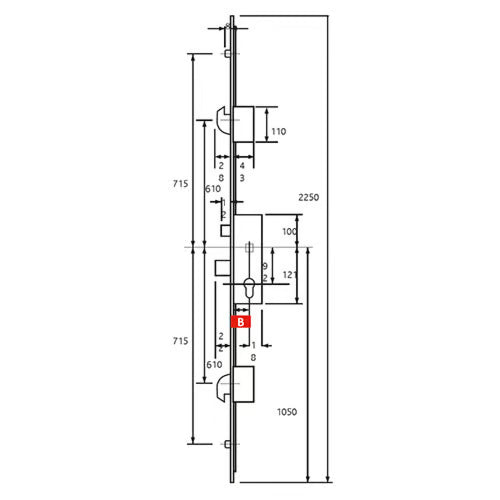

Distance Between Inner Locking: 1232mm
Height: 2250mm
Top Hook to Spindle: 570mm
Bottom Hook to Spindle: 662mm
Door Material: UPVC, Aluminium, Timber, Composite
Measuring Guidelines
Backset Measurement
To measure the backset, take a tape measure and measure the distance from the edge of the door to the center of the lock cylinder. This will give you the backset measurement needed for proper fitting.
Centres PZ Measurement
To measure the centres, measure the distance from the center of the keyhole to the center of the handle hole. This is crucial for ensuring that the lock aligns correctly with the handle.
Faceplate Measurement
For the faceplate, measure the width and height of the existing faceplate on your door. This will help you select the correct faceplate size from the drop-down options.
Operation
The operation of the lock refers to how the locking mechanism functions. Ensure to select the appropriate option from the drop-down based on your specific requirements.
These measurements and specifications ensure that the ERA Deadbolt multipoint door lock fits perfectly and operates efficiently for your security needs.
