Latch Deadbolt 2 Large Hooks 2 Rollers Split Spindle Multipoint Door Lock - Option 2 (top hook to spindle = 730mm)

Product Overview: ERA Deadbolt Multipoint Door Lock

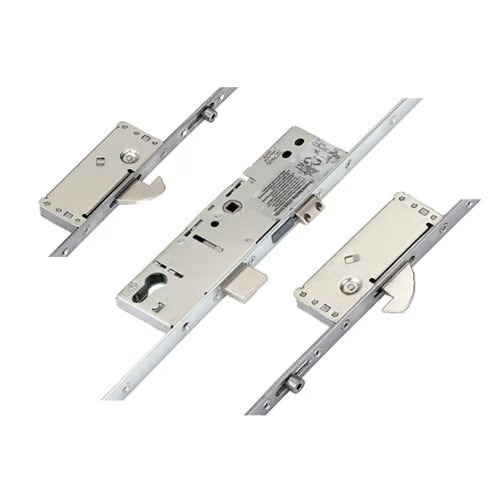

The ERA Deadbolt multipoint door lock is engineered for security and reliability, featuring a robust design that includes 2 rollers, 2 hooks, 1 deadbolt, and 1 latch. This lock is a popular choice in the UK market, known for its versatility and effectiveness in securing various door types.

Identifying Your ERA Lock

Identifying an ERA multipoint door lock can be straightforward, but be cautious of rebranded versions. Many door and window companies use ERA locks, often stamping their own logos on the faceplates. Look for the ERA logo, but also be aware of brands like Surelock, Saracen, Spartan, Duraflex, Supa, Westward, and Cego.

A key feature to identify an ERA lock is the holdback snib on the faceplate, typically grey for deadbolt and hook bolt locks, and blue for Vectis locks. However, some brands may have altered the snib color to black or green.

Mechanism and Gearbox Details

Most ERA multipoint locks utilize a split spindle mechanism, simplifying replacements by focusing on one locking function. Note that this does not apply to SureFire locks or specific parts like 7135113479 and 7145113479, which operate differently.

The distinctive square design of ERA gearboxes, measuring 221mm in length, is crucial for identification. They come in 30mm, 35mm, or 45mm backsets, with consistent dimensions across all models. The gearboxes can accommodate various locking mechanisms, including classic deadbolts and hook bolts, with the British Standard Fortress invincible gearbox offering enhanced security features.

Locking Arrangements and Operation

ERA multipoint locks feature two hook locking arrangements: a standard hook for tight spaces and a larger security steel hook for enhanced protection. Both hooks are bi-directional, providing superior security by throwing upwards and downwards.

The deadbolt, referred to as a linear bolt, has an 18mm throw and is designed to pull the door tightly against the frame. Rollers assist in compression, preventing dust and water ingress while supporting the door's structure.

Installation and Usage

To operate the lock:

• Locking: Lift the handle to engage the locking points, then turn the key to secure the deadbolt.
• Unlocking: Turn the key to unlock, then push the handle down to disengage the locking points.

Compliance and Testing

This lock meets BS EN 1670:2007 Grade 4 Corrosion Resistance standards, enduring 240 hours of testing, and has been endurance tested for 50,000 cycles. It is designed to comply with PAS24:2012 requirements, ensuring high security for your door set.

Additional Products

We offer a range of associated products for the ERA Deadbolt multipoint door locks, including keeps, spindles, handles, and accessories, ensuring you have everything needed for a complete installation.

Whether used in UPVC or aluminium doors, the ERA multipoint door lock stands out for its reliability and security features, making it an excellent choice for homeowners and builders alike.

Product Specification

Manufacturer: ERA

Backset: Select from drop-down - How do I measure the backset?

Centres PZ: 92mm - How do I measure the centres?

Faceplate: Select from drop-down - How do I measure the faceplate?

Spindle Size: 8mm

Rollers: 2

Hooks: 2

Deadbolts: 1

Latch: 1

Main Gearbox: Latch & deadbolt

Operation: Select from drop-down - What is the operation?

Spindle: Split 8mm

Handing: Non handed

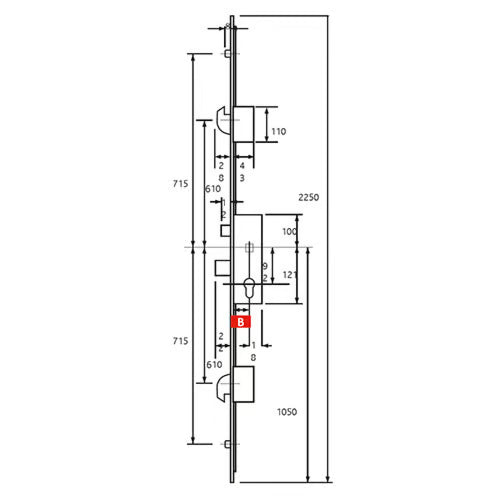

Distance Between Inner Locking: 1480mm

Distance Between Outer Locking: 1690mm

Height: 2250mm

Top Hook to Spindle: 730mm

Bottom Hook to Spindle: 750mm

Top Roller to Spindle: 835mm

Bottom Roller to Spindle: 855mm

Door Material: UPVC, Aluminium

Measuring Guidelines

To ensure accurate measurements for your ERA Deadbolt multipoint door lock, follow these guidelines:

Backset Measurement
To measure the backset, take a tape measure and measure the distance from the edge of the door to the center of the lock cylinder. This measurement is crucial for ensuring the lock fits properly.

Centres PZ Measurement
The PZ measurement refers to the distance from the center of the keyhole to the center of the handle. To measure this, place your tape measure at the center of the keyhole and extend it to the center of the handle.

Faceplate Measurement
To measure the faceplate, you need to measure the width and height of the existing faceplate on your door. This ensures that the new lock will fit seamlessly into the door frame.

Operation
The operation of the lock can vary based on the specific model. Ensure to select the correct operation type from the drop-down menu based on your door's requirements.

By following these measuring guidelines, you can ensure a perfect fit for your ERA multipoint door lock, enhancing both security and functionality.
