Latch Deadbolt 2 Hooks 2 Rollers Double Spindle Multipoint Door Lock (top hook to spindle = 640mm)

Product Overview: Avantis Multipoint Door Lock

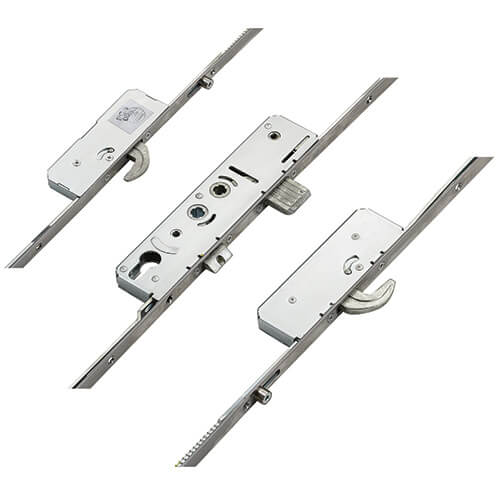

The Avantis multipoint door lock is engineered for security and ease of use, featuring a robust configuration that includes 2 rollers, 2 hooks, 1 deadbolt, and 1 latch. Recognized for its unique latch and deadbolt arrangement, the Avantis 650 Series Residential lock stands out in the market.

Key Features:

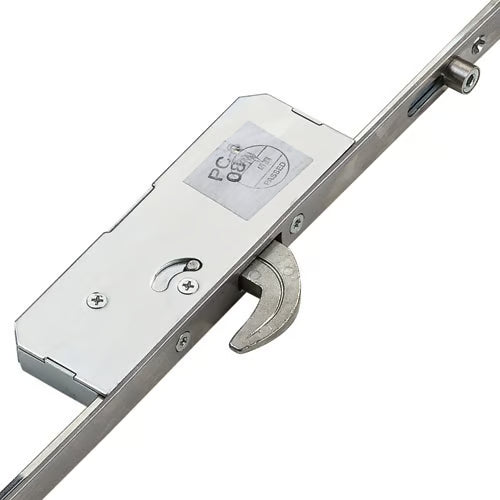

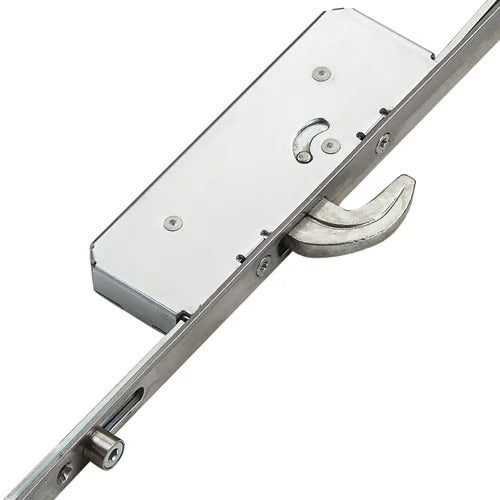

• Superior Hook Design: Avantis locks boast the largest hooks available, measuring 25mm, ensuring enhanced security and durability.

• Innovative Configuration: The deadbolt is positioned above the latch, making it easy to identify the lock before removal.

• UK Market Focus: Specifically designed for UK residential doors, the lock features a 25mm throw and a direct drive deadbolt, outperforming competitors that typically offer a 20mm throw.

• Expertise and Reliability: Established in 2006 by the former CEO of Millenco, Avantis combines innovation with extensive industry experience.

Technical Specifications:

• Gearbox Dimensions: 220mm high with a backset of +15mm. Allow for an additional 2mm when measuring with the faceplate fitted.

• Screw Configuration: Fixed to the faceplate with 4 screws, strategically placed for optimal stability.

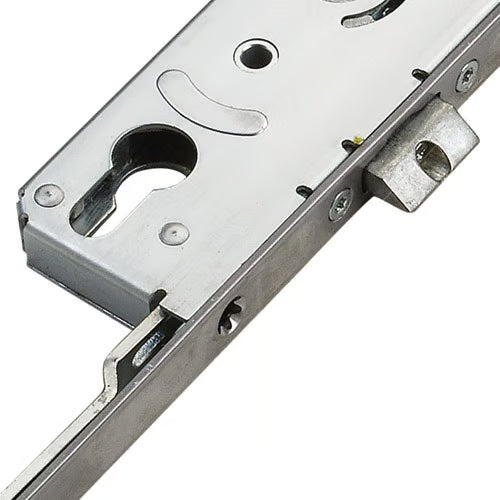

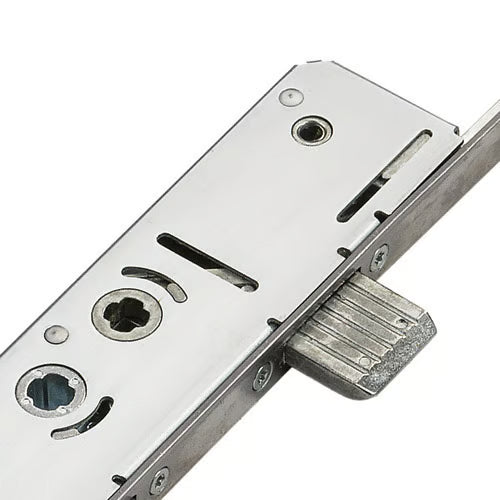

• Latch and Deadbolt Measurements: The deadbolt measures 30mm high and extends 25mm when thrown, with a 60mm distance from the bottom of the deadbolt to the top of the latch.

Operation Instructions:

• Locking the Door:

  1. Close the door to engage the latch automatically.
  2. Lift the handle to engage all locking points.
  3. Turn the key to secure the system.

• Unlocking the Door:

  1. Turn the key to unlock.
  2. Push the handle down to disengage the locking points.
  3. A quarter turn of the key will retract the latch.

Durability and Testing:

• Standards Compliance: Tested to PAS24 & BS6375 for security and performance.

• Corrosion Resistance: Meets BSEN1670:2007 Grade 4 standards.

• Cycle Testing: Endured 50,000 cycles, ensuring long-lasting functionality.

Additional Products:

We offer a comprehensive range of associated products for Avantis multipoint door locks, including keeps, spindles, handles, and accessories to enhance your security solutions.

Latch Reversal Instructions:

To reverse the latch, simply undo the screw, remove the latch, reverse it, reinsert, and replace the screw for seamless operation.

Choose Avantis for a reliable, secure, and user-friendly locking solution for your home.

Product Specification

Manufacturer: Avantis

Backset: Select from drop-down - How do I measure the backset?

Centres PZ: 92mm/62mm - How do I measure the centres?

Faceplate: Select from drop-down - How do I measure the faceplate?

Spindle Size: 8mm

Rollers: 2

Hooks: 2

Deadbolts: 1

Latch: 1

Main Gearbox: Latch & deadbolt

Operation: Select from drop-down - What is the operation?

Spindle: Double 8mm

Handing: Non handed

Distance Between Inner Locking: 1303mm

Distance Between Outer Locking: 1535mm

Height: 2250mm

Top Hook to Spindle: 640mm

Bottom Hook to Spindle: 663mm

Top Roller to Spindle: 768mm

Bottom Roller to Spindle: 767mm

Door Material: UPVC, Aluminium

Measuring Instructions:

To ensure accurate measurements for your Avantis multipoint door lock, follow these guidelines:

Backset Measurement:

1. Measure from the edge of the door to the center of the keyhole.
2. This distance is your backset.

Centres PZ Measurement:

1. Measure from the center of the keyhole to the center of the handle spindle.
2. This will give you the PZ measurement.

Faceplate Measurement:

1. Measure the width and height of the existing faceplate.
2. Ensure to note any specific cutouts or shapes.

Operation:

1. The operation of the lock can vary based on the configuration. Select the appropriate option from the drop-down menu based on your specific needs.

By following these instructions, you can ensure that your Avantis multipoint door lock is installed correctly and functions optimally.
