Product Overview: Elite Standard Multipoint Door Lock

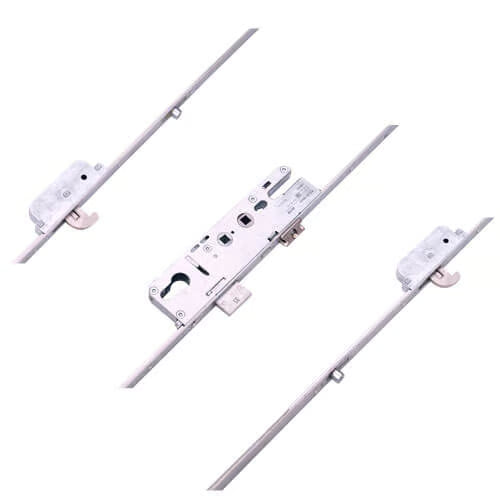

The Elite Standard multipoint door lock is engineered for security and durability, featuring a robust design with 2 rollers, 2 hooks, 1 deadbolt, and 1 latch. This lock is a direct replacement for select older Roto locks, ensuring compatibility and ease of installation.
Key Features:
-
Versatile Applications: Suitable for various door types, including UPVC and aluminum.
-
European Manufacturing: Crafted in Europe with a premium "Silbear" coating that provides exceptional protection against corrosion, tested for up to 480 hours in salt spray conditions.
-
Identifiable Design: Look for the Elite logo stamped on the faceplate. The gearbox includes a slot and a small hole for bolt-through handles, enhancing functionality.
-
Legacy Quality: Manufactured using the same tooling as the original Roto-Frank locks, with the added benefit of the Silbear coating for improved longevity.
-
Compact Options: Available in standard and compact versions for shorter doors, maintaining a consistent handle height of 950mm.
Specifications:
-

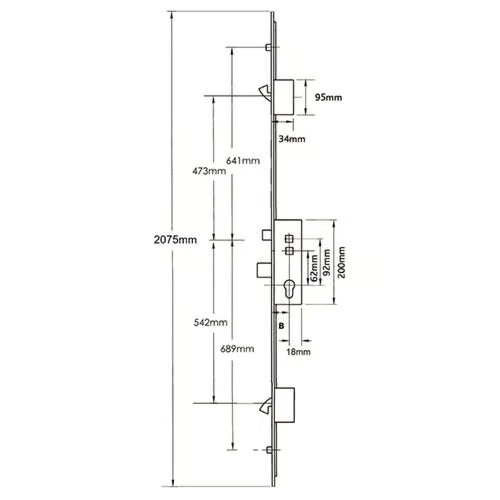

Gearbox Dimensions: 200mm high with a backset of +19mm. Remember to account for an additional 2mm for the faceplate when measuring.
-
Locking Mechanism: The deadbolt projects 20mm, while the latch projects 10mm. The distance between the latch and deadbolt is 63mm.
-
Centre Measurements: Positioned at 62mm and 92mm, with the top spindle located 122mm from the bottom of the case.
-
Adjustable Rollers: Rollers can be adjusted by +/- 1.2mm for optimal weather sealing, ensuring a tight fit against the door frame.
Operation Instructions:
To Lock the Door:
- Close the door to engage the latch automatically.
- Lift the handle to engage the locking points.
- Turn the key to secure the system.
To Unlock the Door:
- Turn the key to unlock the system.
- Push the handle down to disengage the locking points.
- A quarter turn of the key will retract the latch.
Latch Reversal: To reverse the latch, simply undo the screw, remove it, reverse its position, and reinsert the screw.
Additional Products: We offer a variety of associated products for the Elite Standard multipoint door locks, including keeps, spindles, handles, and other accessories.
Product Specifications:
- Manufacturer: Elite
- Backset: Select from drop-down options
- Centres PZ: 92mm/62mm
- Faceplate: Select from drop-down options
- Spindle Size: 8mm
- Operation: Double spindle
- Handing: Non-handed
- Distance Between Locking Points: 1015mm (inner), 1330mm (outer)
- Height: 2200mm
- Material Compatibility: UPVC, Aluminium
This multipoint door lock combines security, ease of use, and adaptability, making it an excellent choice for modern door installations.
