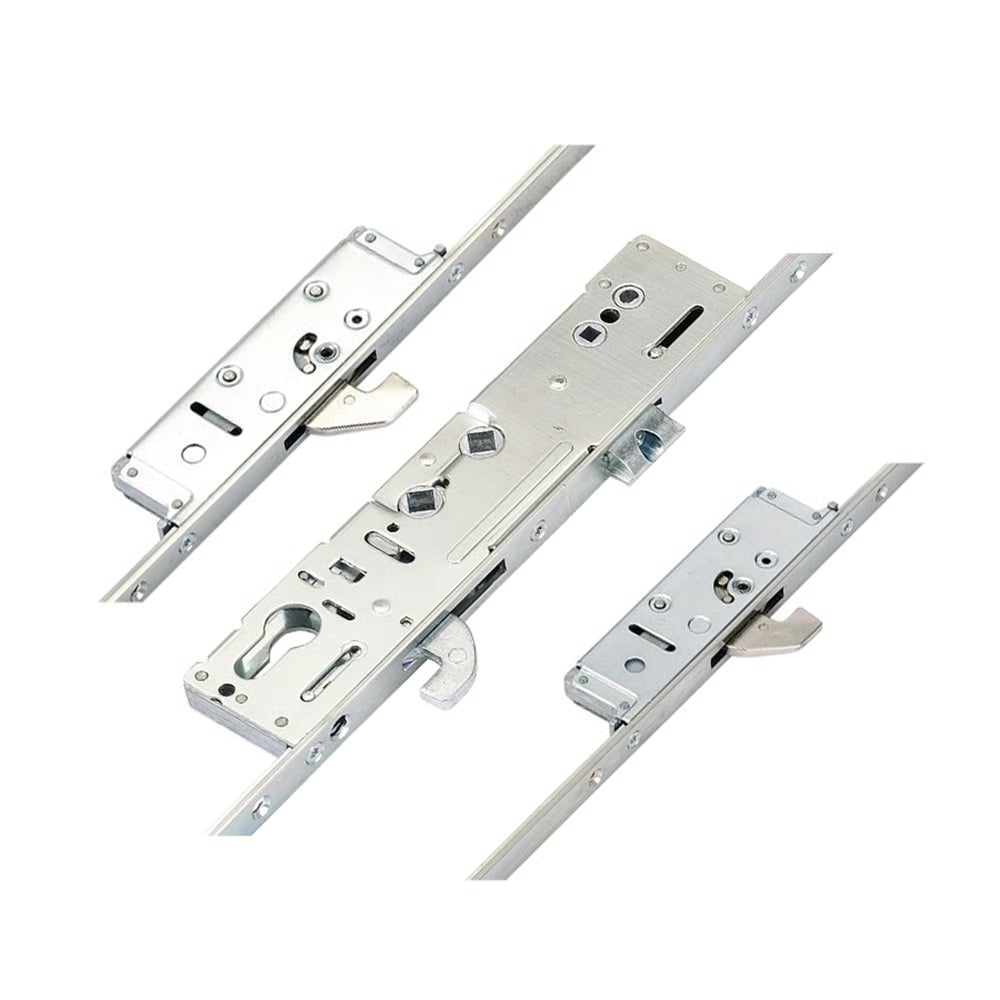

Latch 3 Hooks Lift Lever or Double Spindle Multipoint Door Lock

Product Overview: Lockmaster Standard Multipoint Door Lock

The Lockmaster Standard multipoint door lock is designed for security and versatility, featuring 3 hooks and 1 latch for enhanced protection. This lock is part of a comprehensive range that includes various models tailored to meet specific locking needs.

Key Features:

• Versatile Locking Points: The Lockmaster range offers multiple variants with locking points positioned differently, allowing for easy adaptation to existing door requirements.

• Easy Identification: Once removed from the door, Lockmaster locks can be easily identified by their distinctive features, including an upward-throwing mechanism and a robust gearbox measuring 228mm.

• Best Seller in the UK: Lockmaster locks are recognized as the top-selling multipoint door locks in the UK, now part of the Yale family, which includes brands like Millenco and Millenco Mantis.

• Compatibility: These locks can be found under various brands, including rebranded versions like Milamaster, ensuring a wide availability.

Installation Notes:

• Routing Adjustments: Older versions may require routing prep adjustments of 40-50mm to accommodate different locking point locations.

• Gearbox Options: Available in 35mm or 45mm backsets, with bifold door versions in 25mm and 28mm. Double spindle locks are unsprung, while single spindles are sprung.

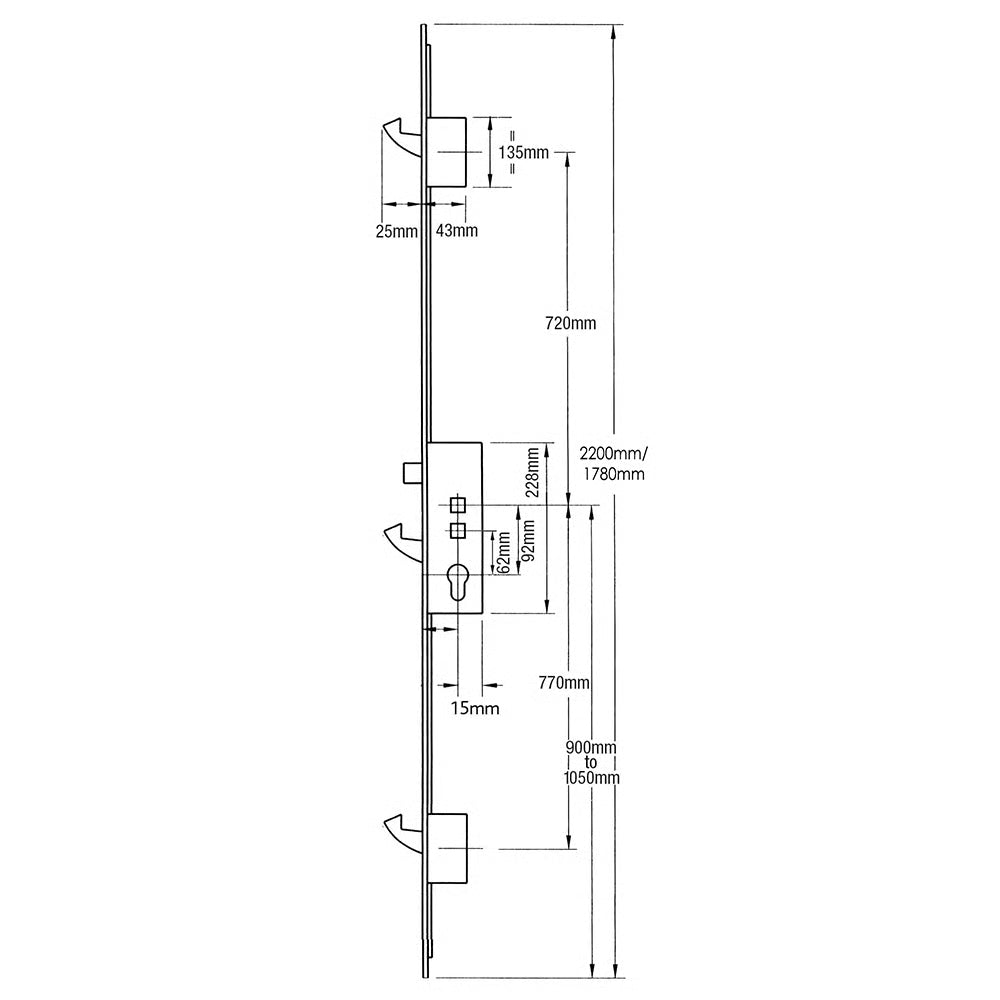

• Dimensions: Gearboxes measure 228mm high plus backset +15mm. The latch and deadbolt both measure 30mm high, with a 65mm distance between them.

Operation Instructions:

• To Lock:

  1. Close the door to engage the latch automatically.
  2. Lift the handle to engage the locking points.
  3. Turn the key to secure the system.

• To Unlock:

  1. Turn the key to unlock the system.
  2. Push the handle down to disengage the locking points.
  3. A quarter turn of the key will retract the latch.

Durability:

Corrosion tested to BS EN 1670:2007 Grade 4 (240 hours NSST), ensuring long-lasting performance.

Associated Products:

We offer a variety of related products for the Lockmaster Standard multipoint door locks, including keeps, spindles, handles, and accessories, making it easy to find everything you need for installation and maintenance.

Applications:

This lock is suitable for various door materials, including UPVC, aluminium, timber, and composite doors, making it a versatile choice for any home or business security needs.

Product Specifications:

• Manufacturer: Lockmaster
• Backset: Select from drop-down options
• Centres PZ: 92mm/62mm
• Faceplate: Select from drop-down options
• Spindle Size: 8mm
• Hooks: 3
• Latch: 1
• Main Gearbox: Latch & hookbolt
• Operation: Select from drop-down options
• Spindle: Double 8mm
• Handing: Non-handed
• Distance Between Inner Locking: 1490mm
• Height: 2200mm
• Top Hook to Spindle: 720mm
• Bottom Hook to Spindle: 770mm
• Door Material: UPVC, Aluminium, Timber, Composite

This comprehensive overview ensures you have all the necessary information to choose and install the Lockmaster Standard multipoint door lock effectively.
