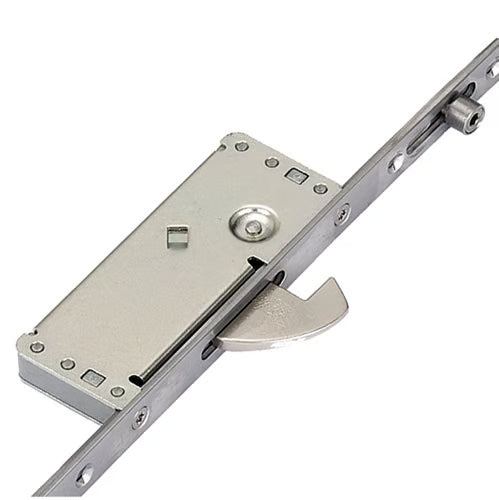

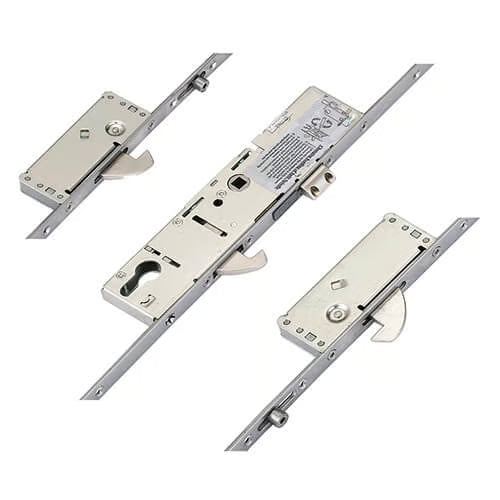

Latch Deadbolt 2 Hooks 2 Rollers Split Spindle Multipoint Door Lock - Option 2 (top hook to spindle = 730mm)

Product Overview: ERA Deadbolt Multipoint Door Lock

The ERA Deadbolt multipoint door lock is engineered for security and reliability, featuring a robust design that includes 2 rollers, 2 hooks, 1 deadbolt, and 1 latch. This lock is a popular choice in the UK, known for its versatility and compatibility with various door types.

Identifying Your ERA Lock

Identifying an ERA multipoint lock can be straightforward, but be cautious of rebranded versions. Many door and window companies use ERA locks, often stamping their own logos on the faceplates. Look for the ERA logo or check for brands like Surelock, Saracen, and others.

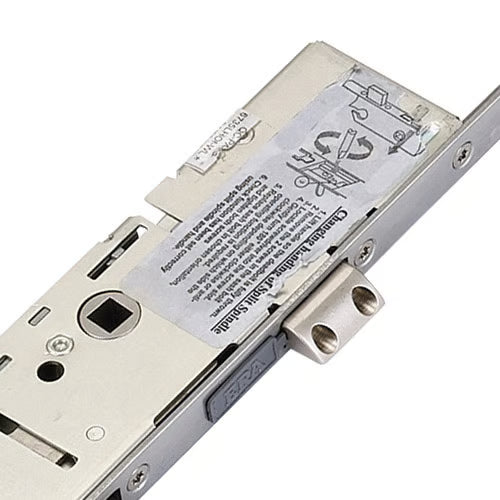

A key feature to identify an ERA lock is the holdback snib on the faceplate, typically grey for deadbolt and hook bolt locks, and blue for Vectis locks. However, some brands may have altered the snib color, so it's essential to verify.

Lock Mechanism and Gearbox Details

Most ERA multipoint locks utilize a split spindle mechanism, simplifying replacements by focusing on one locking function. Note that this does not apply to SureFire locks or specific automatic locking models.

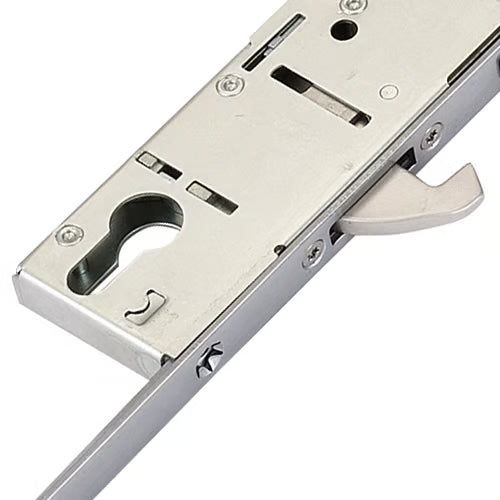

The distinctive square design of ERA gearboxes, measuring 221mm in length, allows for easy identification. They come in 30mm, 35mm, or 45mm backsets, with interchangeable components (excluding certain models).

Locking Arrangements and Security Features

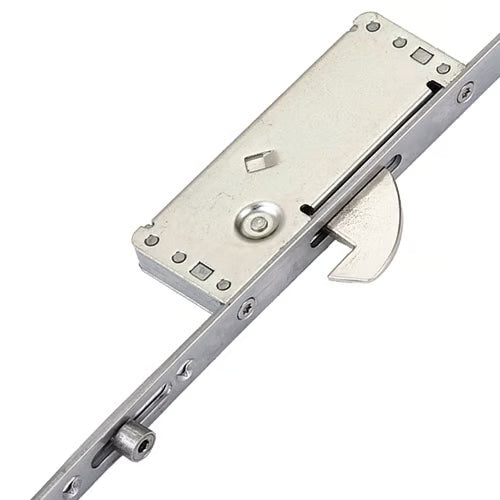

ERA multipoint locks offer two hook locking arrangements: a standard hook for tight spaces and a larger security steel hook for enhanced protection. Both hooks operate bi-directionally, providing superior security.

The deadbolt, or linear bolt, features an 18mm throw and is designed to pull the door tightly against the frame, ensuring a secure fit. Rollers assist in compression, preventing dust and water ingress while maintaining door integrity.

Operation Instructions

To lock the door:

1. Lift the handle to engage the locking points.
2. Turn the key to secure the locking points and deadbolt.

To unlock the door:

1. Turn the key to disengage the system.
2. Push the handle down to retract the latch.

Compliance and Testing

This lock meets BS EN 1670:2007 Grade 4 Corrosion Resistance standards and has been endurance tested for 50,000 cycles. It is designed to comply with PAS24:2012 requirements, ensuring high security for your door set.

Additional Products

We offer a comprehensive range of associated products for ERA Deadbolt multipoint door locks, including keeps, spindles, handles, and accessories, ensuring you have everything you need for installation and maintenance.

Whether used in UPVC or aluminium doors, the ERA Deadbolt multipoint door lock stands out for its quality and security features, making it an excellent choice for any property.

Product Specification

Manufacturer: ERA

Backset: Select from drop-down - How do I measure the backset?

Centres PZ: 92mm - How do I measure the centres?

Faceplate: Select from drop-down - How do I measure the faceplate?

Spindle Size: 8mm

Rollers: 2

Hooks: 2

Deadbolts: 1

Latch: 1

Main Gearbox: Latch & deadbolt

Operation: Select from drop-down - What is the operation?

Spindle: Split 8mm

Handing: Non handed

Distance Between Inner Locking: 1480mm

Distance Between Outer Locking: 1690mm

Height: 2250mm

Top Hook to Spindle: 730mm

Bottom Hook to Spindle: 750mm

Top Roller to Spindle: 835mm

Bottom Roller to Spindle: 855mm

Door Material: UPVC, Aluminium

Measuring Guidelines

Backset Measurement
To measure the backset, take a tape measure and measure the distance from the edge of the door to the center of the lock cylinder. This will give you the backset measurement needed for proper fitting.

Centres PZ Measurement
For the PZ measurement, measure the distance from the center of the keyhole to the center of the handle hole. This is crucial for ensuring that the lock and handle align correctly.

Faceplate Measurement
To measure the faceplate, you need to measure the width and height of the existing faceplate on your door. This will help you select the correct faceplate from the drop-down options.

Operation
The operation of the lock refers to how the locking mechanism functions. Ensure to select the appropriate option from the drop-down based on your specific requirements.

These specifications and measurements are essential for ensuring that your ERA Deadbolt multipoint door lock is installed correctly and functions optimally.
