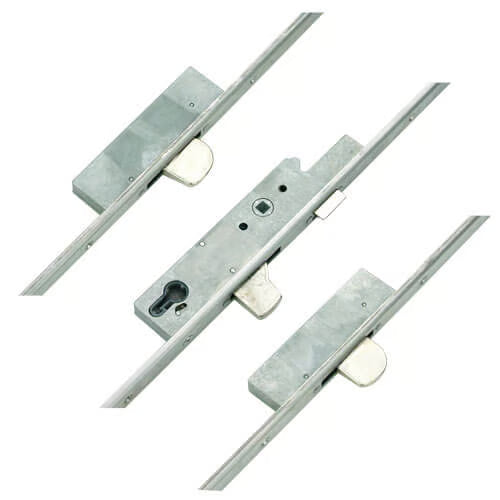

Product Overview: Sobinco Multipoint Door Lock
The Sobinco multipoint door lock is engineered for security and reliability, featuring 3 deadbolts and 1 latch. Crafted in Belgium, these high-quality locks are predominantly used on aluminum doors, ensuring durability and performance.
Key Features:
-
Unique Design: Sobinco locks are identifiable by their distinctive "drop bolt" mechanism, which combines a hook and deadbolt that engage as the lock is activated.
-
Versatile Branding: While often found branded as Raynaers or Aliplast, these locks are fundamentally Sobinco, maintaining consistent locking positions across models.
-
Standard Locking Configuration: All Sobinco locks utilize a classic 1490mm locking center configuration, with the top drop bolt positioned at 720mm and the bottom at 760mm from the spindle.
-
Faceplate Options: Available faceplates include:
- 16mm
- Flat 20mm (square edges)
- Flat 24mm (square edges)
- U-shaped 22mm x 6.5mm
- U-shaped 24mm in two sizes: 24mm x 5mm and 24mm x 6.5mm
-
Gearbox Variants: Choose from 30mm, 35mm, and 40mm backsets, designed specifically for aluminum doors. All gearboxes are single spindle with key wind operation.
Specifications:
- Manufacturer: Sobinco
- Backset: Selectable via drop-down
- Centres PZ: 92mm
- Faceplate: Selectable via drop-down
- Spindle Size: 8mm
- Deadbolts: 3
- Latch: 1
- Main Gearbox: Latch & deadbolt
- Operation: Selectable via drop-down
- Spindle: Single 8mm
- Handing: Non-handed
- Distance Between Inner Locking: 1490mm
- Height: 2170mm
- Top Deadbolt to Spindle: 720mm
- Bottom Deadbolt to Spindle: 760mm
Operation Instructions:
To Lock the Door:
- Close the door to automatically engage the latch.
- Turn the key to throw and engage the locking points.
To Unlock the Door:
- Turn the key to unlock by "unwinding" the locking points.
- A further quarter turn will retract the latch.
Additional Products:
We offer a variety of associated products for Sobinco multipoint door locks, including keeps, spindles, handles, and accessories, ensuring you have everything you need for installation and maintenance.
This lock is suitable for various applications, including UPVC, aluminum, timber multipoint, and composite doors, making it a versatile choice for your security needs.
