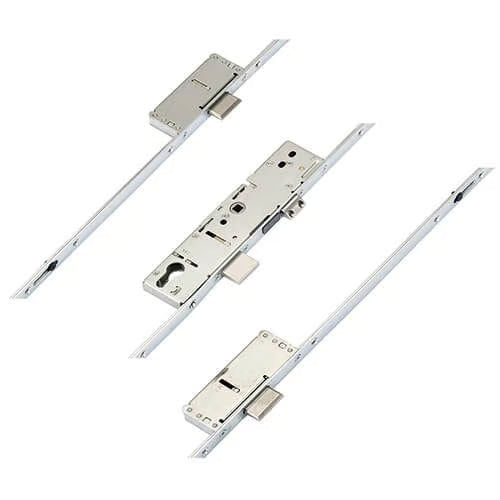

Latch 3 Deadbolts Split Spindle Multipoint Door Lock - Option 2 (top deadbolt to spindle = 680mm)

Product Overview: ERA Deadbolt Multipoint Door Lock

The ERA Deadbolt multipoint door lock is engineered for security and reliability, featuring 3 deadbolts and 1 latch. This lock is a popular choice in the UK, known for its robust design and versatility across various door types.

Identifying Your ERA Lock

Recognizing an ERA multipoint door lock can be straightforward, but be cautious of rebranded versions. Many door and window companies utilize ERA locks, often stamping their faceplates with different brand logos, including Surelock, Saracen, and others.

A key feature to look for is the holdback snib on the faceplate, typically grey for deadbolt and hook bolt locks, and blue for Vectis locks. However, some brands may have altered the snib color to black or green.

Understanding the Mechanism

Most ERA multipoint locks incorporate a split spindle mechanism, simplifying replacements by focusing on a single locking function. Note that this does not apply to SureFire locks or specific automatic locking models.

To accurately identify the lock, it’s advisable to remove it from the door, especially if the brand is unclear.

Distinctive Gearbox Features

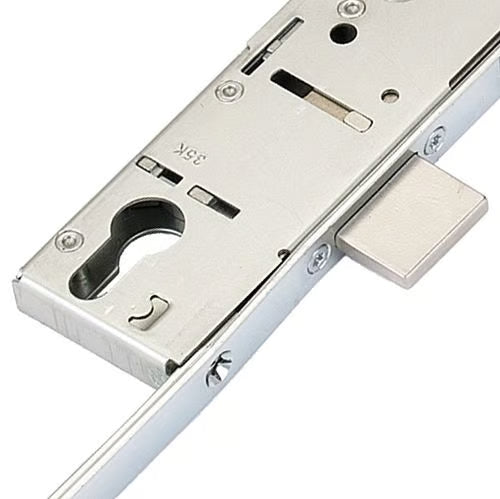

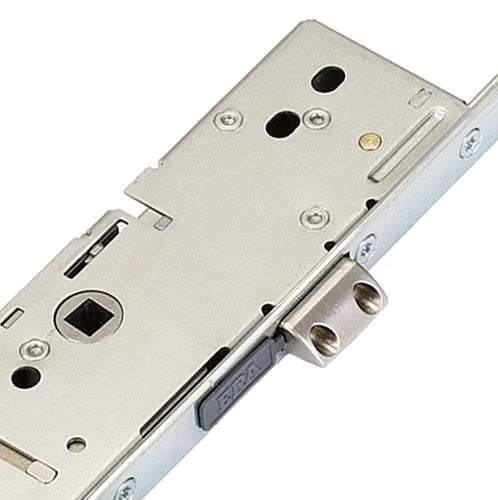

ERA gearboxes are uniquely designed with a square shape and no corner cutouts. They measure 221mm in length, with a width determined by the backset plus 18mm. Available backsets include 30mm, 35mm, or 45mm, with all gearboxes sharing the same dimensions.

These gearboxes can accommodate various locking mechanisms, including classic deadbolts and hook bolts. The British Standard Fortress invincible gearbox is notable for its hardened drill plates, enhancing security.

Interchangeability and Customization

With the exception of the British Standard Fortress lock and SureFire models, ERA gearboxes are interchangeable. If your client requires a different locking mechanism, such as a hook lock instead of a deadbolt, we can customize the lock to meet their needs.

Technical Specifications

• Latch Height: 24mm (with 2 distinctive screws)
• Deadbolt Height: 30mm
• Distance Between Latch and Deadbolt: 61mm
• Screw Hole Measurements:
  • First to second: 37mm
  • Second to third: 85mm
  • Third to fourth: 43mm

When measuring the backset, account for an additional 2-3mm for the faceplate.

Deadbolt Functionality

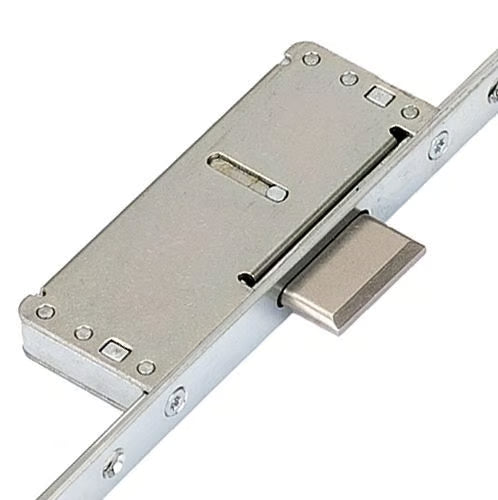

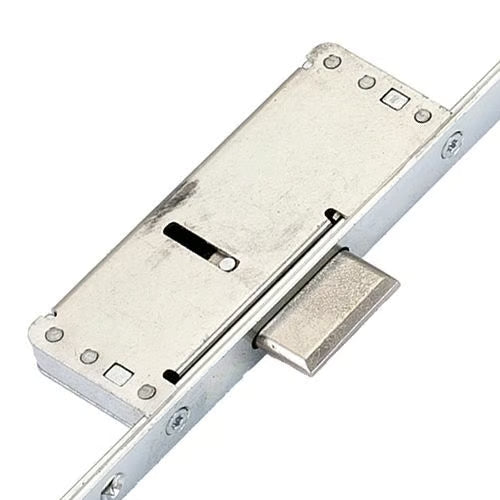

ERA deadbolts, referred to as linear bolts, feature an 18mm throw and are chamfered to secure the door against the frame. These locks are commonly installed on timber and composite doors.

Operation Instructions

To Lock the Door:

1. Lift the handle upwards to engage the locking points.
2. Turn the key to secure the locking points and main deadbolt.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Compliance and Testing

• Meets BS EN 1670:2007 Grade 4 Corrosion Resistance (240 hours)
• Endurance tested to 50,000 cycles
• Designed to comply with PAS24:2012 standards

Additional Products

We offer a comprehensive range of associated products for ERA Deadbolt multipoint door locks, including keeps, spindles, handles, and accessories, ensuring you have everything needed for installation and maintenance.

This lock is suitable for various applications, including UPVC, aluminium, timber, and composite doors.

Product Specification

Manufacturer: ERA

Backset: Select from drop-down
How do I measure the backset?
To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock cylinder. This measurement is crucial for ensuring a proper fit.

Centres PZ: 92mm
How do I measure the centres?
To measure the centres, find the distance between the center of the keyhole and the center of the handle hole. This ensures that both components align correctly for smooth operation.

Faceplate: Select from drop-down
How do I measure the faceplate?
Measure the width and height of the faceplate, ensuring to account for any cutouts or notches that may be present. This will help in selecting the correct faceplate for your lock.

Spindle Size: 8mm

Deadbolts: 3

Latch: 1

Main Gearbox: Latch & deadbolt

Operation: Select from drop-down
What is the operation?
The operation refers to how the lock engages and disengages. Typically, this involves lifting the handle to engage the locking points and turning the key to secure the deadbolt.

Spindle: Split 8mm

Handing: Non handed

Distance Between Inner Locking: 1380mm

Height: 2250mm

Top Deadbolt to Spindle: 680mm

Bottom Deadbolt to Spindle: 700mm

Door Material: UPVC, Aluminium, Timber, Composite
