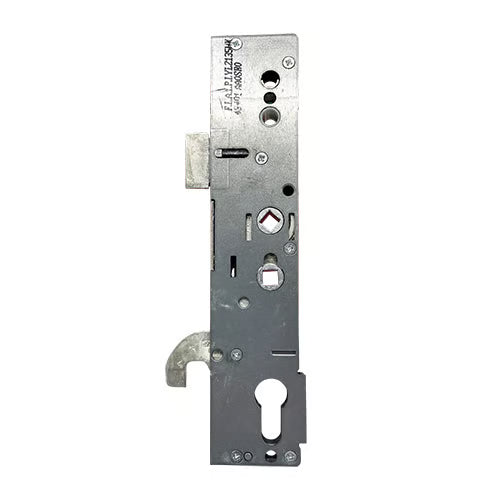

Introducing the Vevo Double Spindle Gearbox, designed for durability and ease of use. This gearbox features a 35mm backset, a latch and deadbolt mechanism, and is unsprung, making it ideal for specific applications.
Key Features
-
Double Spindle Design: This model is a double spindle (92/62PZ), providing versatility in operation.
-
Dimensions: The case height measures 228mm, which is slightly shorter than the Safeware case (255mm), making it essential to check compatibility.
-
Compatibility: Specifically suited for old-style Securistyle multipoint locks. Note that this gearbox is not suitable for use with unsprung handles.
-
Distinct Appearance: The Key & Turn gearboxes differ from standard Vevo gearboxes, featuring a unique design with the corner of the lock removed.
-
Secure Attachment: Gearboxes are securely attached to faceplates with three screws, ensuring stability and reliability.
Installation and Operation
-
Backset Measurement: When measuring the backset, remember to allow 2-3mm for the faceplate. For instance, a 28mm backset gearbox will measure 25mm when not fixed to the strip.
-
Operation Modes: The gearbox can be operated using a lift lever or a double spindle mechanism.
-
Latch Reversal: To reverse the latch, simply undo the screw, remove the latch, reverse it, and reinsert before replacing the screw.
Locking and Unlocking Instructions
To Lock the Door:
- Close the door to automatically engage the latch.
- Lift the handle to engage additional locking points.
- Throw the deadbolt and lock the system by turning the key (note: some brands may throw the deadbolt by lifting the handle).
To Unlock the Door:
- Turn the key to unlock the system.
- Push the handle down to disengage the locking points.
- A further quarter turn of the key will retract the latch.
Latch Release Mechanism
If the latch is pushed in before fitting the case to the strip, it may stick. To release the latch, use one of the following methods based on your lock version:
-
Square Hold-Back Spindle: Turn the spindle follower at the top of the gearbox to release the latch.
-
Hollow White Plastic Insert: Insert a screwdriver into the face of the lock and push down on the white plastic piece to release the latch.
-
Normal Handle Spindle: If neither of the above features is present, insert a standard handle spindle through the lever follower, pull the lever down, and lift it fully up to release the latch.
Once installed, the latch will operate normally unless manually pushed back into the lock case.
Product Specifications
- Manufacturer: Vevo
- Backset: 35mm

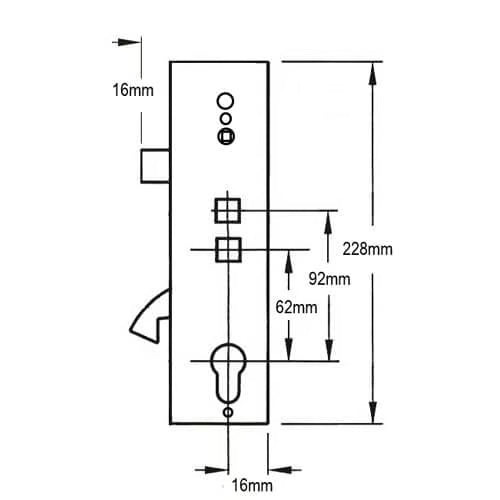

- Centres PZ: 92mm/62mm
- Case Height: 228mm
- Case Width: 51mm
- Copy/Genuine: Genuine
- Cylinder Type: Euro
- Handing: Not Handed
- Main Gearbox: Latch & hookbolt
- Spindle: Double 8mm
- Operation: Lift Lever or Double Spindle Nightlatch
- Packaging: Supplied in singles
This Vevo Double Spindle Gearbox is a reliable choice for enhancing your security system. Ensure proper installation and operation for optimal performance.
