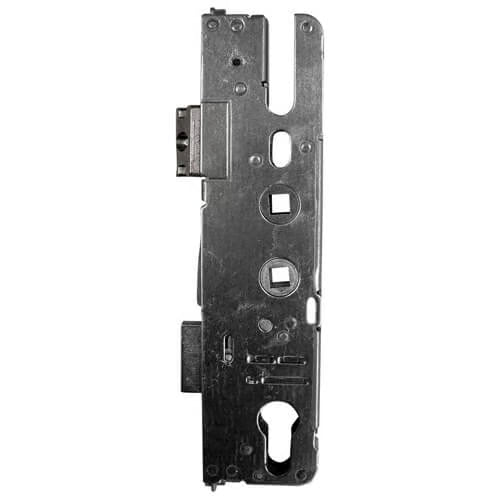

Product Overview: Roto H500 MVD500 Gearbox
The Roto H500 MVD500 is a high-quality genuine gearbox designed for durability and reliability. It features a double spindle and is available with a backset of either 35mm or 45mm, making it versatile for various door types.
Operation Modes:
- Lift Lever or Double Spindle: This gearbox can be operated using either a lift lever or a double spindle mechanism, providing flexibility based on user preference.
Latch Reversal Instructions:
To reverse the latch, simply undo the screw in the latch, remove it, reverse its position, and reinsert it before replacing the screw.
Locking Mechanism:
-
Engaging the Lock:
- When closing the door, the latch automatically engages.
- Lift the handle to engage additional locking points.
- Throw the deadbolt by turning the key. (Note: On some brands, lifting the handle will automatically throw the deadbolt.)
-
Unlocking the Door:
- Unlock the system by turning the key.
- Push the handle downwards to disengage the locking points.
- A further quarter turn of the key will retract the latch.

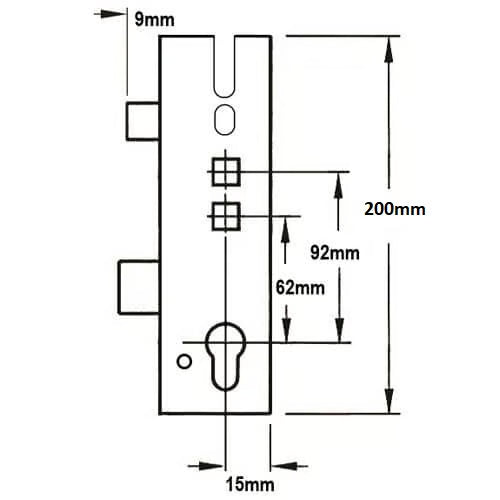

Product Specifications:
- Manufacturer: Roto
- Backset Options: 35mm or 45mm (Refer to our guide on how to measure the backset)
- Centres PZ: 92mm/62mm (Check our measurement guide for assistance)
- Case Height: 200mm
- Case Width: Backset + 15mm
- Copy/Genuine: Genuine
- Cylinder Type: Euro
- Handing: Not Handed
- Main Gearbox: Latch & Deadbolt
- Spindle Size: Double 8mm
- Operation Type: Lift Lever or Double Spindle Nightlatch (Learn more about the operation)
- Packaging: Supplied in singles
This gearbox is an excellent choice for those seeking a reliable locking solution that combines ease of use with robust security features.
