Description
Product Information

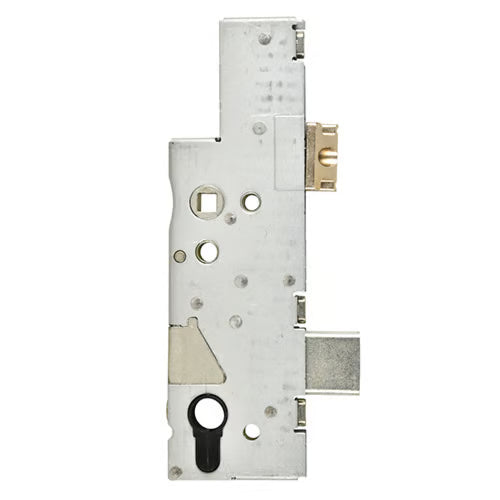

The Lockmaster multipoint gearbox is designed for enhanced security, featuring both a latch and deadbolt mechanism with a convenient key wind feature.
To Lock the Door
- Close the door to automatically engage the latch.
- Turn the key to throw and engage or "wind" out the locking points.
To Unlock the Door
- Turn the key to unlock by "unwinding" the locking points.
- A further quarter turn of the key will retract the latch.

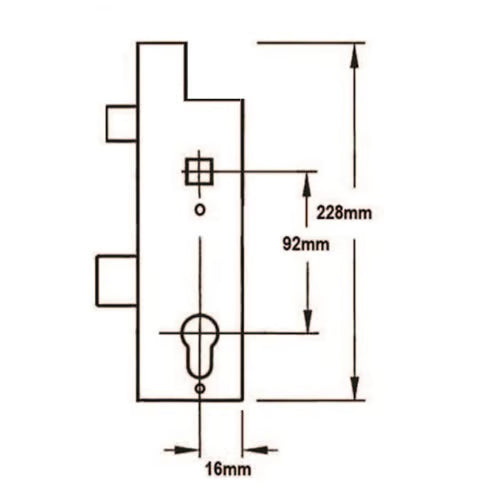

Product Specification
- Manufacturer: Lockmaster
-
Backset: 45mm or 55mm
How to measure the backset? -
Centres PZ: 92mm
How to measure the centres? - Case Height: 228mm
- Case Width: Backset + 15mm
- Copy/Genuine: Genuine
- Cylinder Type: Euro
- Handing: Not Handed
- Main Gearbox: Latch & deadbolt
- Spindle: Single 8mm
-
Operation: Key Wind
What is the operation? - Packaging: Supplied in singles
For any further inquiries or assistance regarding installation or specifications, feel free to reach out!
