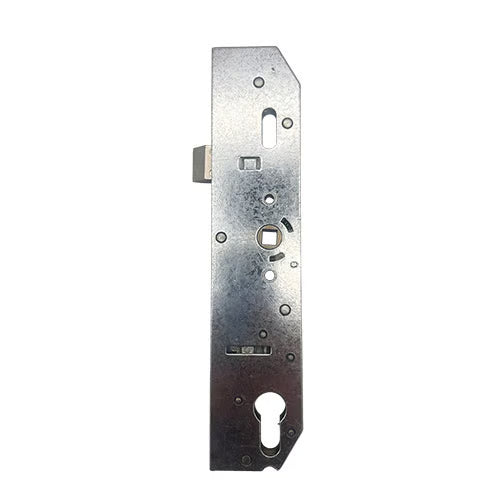

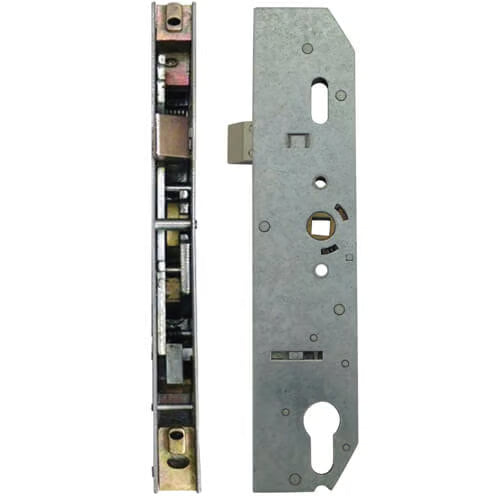

Product Overview: Mila Copy Gearbox
The Mila copy gearbox is designed for versatility and ease of use, featuring a latch-only mechanism with a single 8mm spindle. This product is also recognized under the names Coldseal and Swiftlocks.
Key Features:
-
Fixing Points: Non-threaded, requiring M4 x 10mm self-tapping screws (Part Number: M430CSK).
-
Configurations Available:
- Latch only (single spindle)
- Latch and deadbolt (available in single and double spindle options)
-
Backsets Offered:
- Latch only: 25mm, 28mm, 35mm, and 45mm
- Latch and deadbolt: 35mm and 45mm (single spindle), 35mm (double spindle)
-
Dimensions:
- Overall height: 233mm
- Width: Backset + 20mm
- Latch height: 20mm
- Deadbolt height: 30mm
- Distance between latch and deadbolt: 80mm
Compatibility Note: Older locks may feature an offset or cranked connector. When replacing a gearbox, ensure to adapt the drive gear behind the faceplate, as replacement gearboxes now come with inline connectors. Follow the technical guide for necessary modifications.
Associated Products: We offer a variety of related products for Mila Standard gearboxes, including:
- Multipoint door locks
- Keeps
- Spindles
- Handles
- Accessories
Operation Instructions:
To Lock the Door:
- Lift the handle upwards to engage the locking points.
- Secure the locking points and main deadbolt (if applicable) by turning the key.
To Unlock the Door:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.
Product Specifications:
- Manufacturer: Mila
- Backset Options: 25mm, 28mm, 35mm, or 45mm
- Centres PZ: 92mm
- Case Height: 233mm
- Case Width: Backset + 20mm
- Copy/Genuine: Copy
- Cylinder Type: Euro
- Handing: Not Handed
- Main Gearbox: Latch only
- Spindle: Single 8mm
- Operation: Lift Lever
- Packaging: Supplied in singles
For any further inquiries or assistance, please refer to our technical guide or contact our support team.
