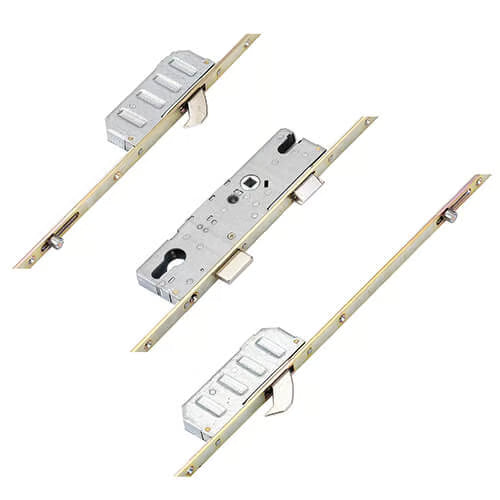

Winkhaus Cobra Multipoint Door Lock Overview
The Winkhaus Cobra multipoint door lock is engineered for security and versatility, featuring a robust design that includes 2 rollers, 2 hooks, 1 deadbolt, and 1 latch. This lock is a popular choice for various door types, including PVCu, Aluminium, Composite, and Timber.
Key Features:
-
Locking Mechanism: The Cobra lock incorporates a central deadbolt with a distance of 1490mm between hooks and 1081mm between roller cams, ensuring a secure fit.
-
Faceplate Options: Available with a standard 16mm faceplate, a 20mm version can be ordered upon request.
-
Interchangeability: The Cobra range allows for easy upgrades and modifications to meet specific user needs.
-
Operation Types: Choose from lift lever, split spindle, or key wind operations, identifiable by the color-coded stickers on the gearbox.
Security Enhancements:
-
Entryguard Function: This feature acts like a door chain, providing added security that can be released from the outside with a key.
-
FA Lockout Cylinder: This double function cylinder allows for enhanced security by locking both internal and external sides with the same key, preventing unauthorized exit.
Installation and Compatibility:
Winkhaus gearboxes are compact, measuring 185mm high with a backset of +15mm, making them among the smallest on the market. The routing details are consistent across the range, simplifying the process of changing locking operations or upgrading to automatic locking.
Durability and Testing:
The Cobra locks are tested to withstand 100,000 cycles, ensuring long-lasting performance. The solid steel Cobra hooks provide high security, fully engaging the keep rail to prevent forced entry.
Product Specifications:
- Manufacturer: Winkhaus
- Backset: Selectable
- Centres PZ: 92mm
- Spindle Size: 8mm
- Operation: Split spindle
- Handing: Non-handed
- Distance Between Inner Locking: 1490mm
- Distance Between Outer Locking: 1081mm
- Height: 2100mm
- Top Hook to Spindle: 738mm
- Bottom Hook to Spindle: 752mm
- Door Material Compatibility: UPVC, Aluminium
Conclusion:
The Winkhaus Cobra multipoint door lock is a reliable choice for enhancing the security of your doors. With its versatile features and robust construction, it meets the demands of modern door locking systems. For any additional products or accessories, we offer a comprehensive range to complement your Winkhaus lock.
