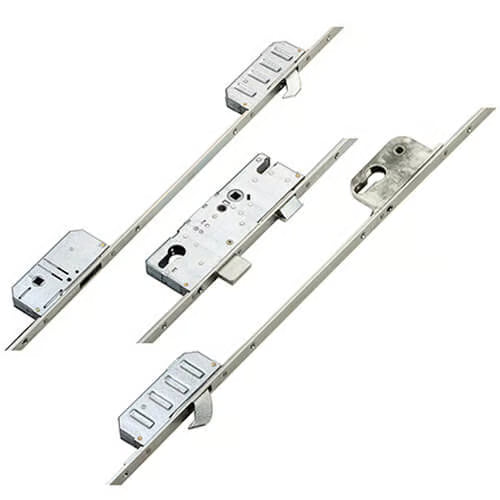

Winkhaus Cobra Multipoint Door Lock Overview
The Winkhaus Cobra multipoint door lock is designed for enhanced security and convenience, featuring a robust configuration that includes 2 hooks, 1 deadbolt, and 1 latch with an Entryguard facility. This lock is a reliable choice for various door types, including UPVC, aluminum, timber, and composite doors.
Key Features
-
Multipoint Locking System: The Cobra lock utilizes a central latch and deadbolt, complemented by 2 or more "Cobra" hook locking points, ensuring maximum security.
-
Versatile Operation: Available in lift lever, split spindle, or key wind operation, the Cobra lock adapts to your specific needs.
-
Entryguard Function: This innovative feature acts like a door chain, providing additional security while allowing the key holder to release it from the outside with a simple turn of the key.
-
Lockout Cylinder Option: The FA lockout cylinder double function includes two locking cylinders, enhancing security by preventing unauthorized exit from the property.
Identification and Compatibility
To easily identify a Winkhaus Cobra lock, check for the Winkhaus logo and the Secured by Design logo on the faceplate. The Cobra version is distinguished by its central deadbolt and non-handed hooks.
Specifications
- Manufacturer: Winkhaus
- Backset: Customizable (refer to our guide on measuring backset)
- Centres PZ: 92mm
- Faceplate: Selectable (see our measurement guide)
- Spindle Size: 8mm
- Hooks: 2
- Deadbolts: 1
- Latch: 1
- Other Locking Points: Entryguard
- Main Gearbox: Latch & deadbolt
- Operation: Selectable (consult our operation guide)
- Handing: Non-handed
- Lockout Backset: 55mm
- Distance Between Inner Locking: 1490mm
- Height: 2100mm
- Top Hook to Spindle: 720mm
- Bottom Hook to Spindle: 770mm
Installation and Maintenance
Winkhaus gearboxes are uniquely attached to the faceplate with rivets, making them easier to identify and replace. For detailed instructions on replacing a Winkhaus gearbox, please refer to our comprehensive guide and video.
Security Assurance
Winkhaus Cobra locks are rigorously tested to withstand 100,000 cycles, ensuring durability and reliability. With solid steel Cobra hooks that fully engage the keep rail, these locks are designed to prevent forced entry effectively.
Explore our range of associated products, including keeps, spindles, handles, and accessories, to complement your Winkhaus Cobra multipoint door lock.
