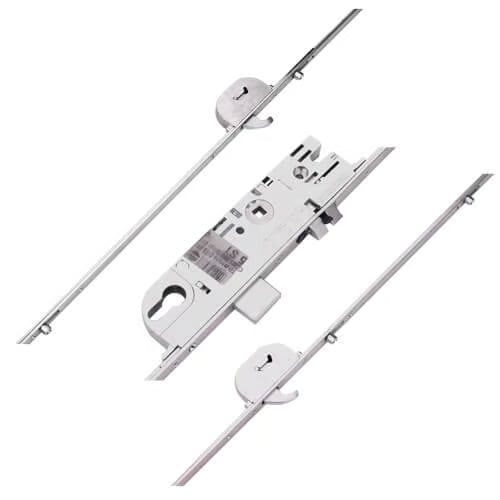

C-TS Latch Deadbolt 4 Rollers 2 Hooks Split Spindle Multipoint Door Lock

Product Overview: Maco C-TS Multipoint Door Lock

The Maco C-TS multipoint door lock is designed for enhanced security and functionality, featuring a robust configuration that includes 4 rollers, 2 hooks, 1 deadbolt, and 1 latch. This innovative locking system is ideal for both UPVC and aluminium doors, providing a reliable solution for residential and commercial applications.

Key Features:

• Versatile Locking Mechanism: The C-TS lock incorporates a split spindle design, allowing it to function as either a lift lever or split spindle lock. This versatility makes it a suitable replacement for the older G-TS range, although it is important to note that the locking points are positioned differently, requiring some adjustments during installation.

• Distinctive Design: Identified by the Maco logo on the faceplate, the C-TS locks feature a rounded shape in both the main gearbox and hook boxes, ensuring a sleek and modern appearance. The innovative "Top Hat" faceplate option provides a seamless finish by covering routing details.

• Enhanced Security Features: The lock includes a standard uni-directional hook and an optional hook with an anti-lift pin for increased security. The hardened steel i.S. cams function to compress the door against the frame, aiding in weather sealing and preventing warping.

• Durability and Endurance: Tested to withstand 100,000 cycles, the Maco C-TS lock is built for longevity and reliability, making it a smart investment for any property.

Installation and Operation:

• Locking Procedure:

  1. Lift the handle to engage the locking points.
  2. Secure the lock by turning the key to engage the deadbolt and locking points.

• Unlocking Procedure:

  1. Turn the key to unlock the system.
  2. Push the handle down to disengage the locking points and retract the latch.

Specifications:

• Manufacturer: Maco
• Backset: Customizable (refer to measurement guidelines)
• Centres PZ: 92mm
• Faceplate Options: Available in 16mm and 20mm
• Spindle Size: 8mm
• Locking Points: 4 rollers, 2 hooks, 1 deadbolt, 1 latch
• Operation: Split spindle
• Handing: Non-handed
• Material Compatibility: UPVC, Aluminium

Additional Information:

For those looking to replace or upgrade their locking systems, the Maco C-TS multipoint door lock is an excellent choice, offering both security and ease of use. We also provide a range of associated products, including keeps, spindles, handles, and accessories to complement your lock installation.

Latch Reversal: To reverse the latch, simply push the serrated button on the side of the case, release the latch, reverse it, and reinsert.

Explore the Maco C-TS range today for a secure and stylish locking solution!
