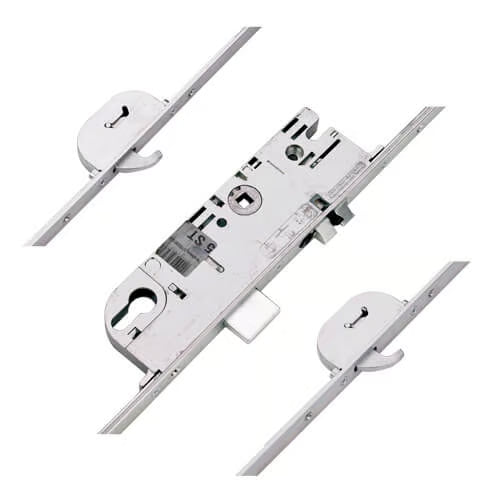

Maco C-TS Multipoint Door Lock Overview
The Maco C-TS multipoint door lock is designed for enhanced security and versatility, featuring a robust configuration of 2 hooks, 1 deadbolt, and 1 latch. This lock is an excellent choice for various door materials, including UPVC, aluminium, timber, and composite.
Key Features
-
Innovative Design: Introduced in 2012, the C-TS range replaces the older G-TS series, offering a split spindle function that allows for both lift lever and split spindle operation.
-
Distinctive Identification: Easily identifiable by the Maco logo on the faceplate and the unique shape of the locking gearboxes.
-
Faceplate Options: Available in traditional 16mm and 20mm faceplates, with an innovative "Top Hat" faceplate option that provides a seamless finish.
-
Compact Size: Measuring 202mm high, the C-TS gearbox is one of the smaller options available, making it suitable for various door designs.
-
Soft Latch Mechanism: Features a distinctive "soft" latch that enhances usability, although multiple variants exist.
Installation Notes
When replacing an old G-TS lock with a C-TS, be aware that adjustments may be necessary due to differing locking point positions. The keeps will also need to be repositioned for optimal fit.
Operation Instructions
To lock the door:
- Lift the handle upwards to engage the locking points.
- Turn the key to secure the locking points and the main deadbolt.
To unlock the door:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.
Security Features
The C-TS lock offers two hook locking arrangements:
- Standard Uni-Directional Hook: Throws upwards for standard security.
- Hook and Anti-Lift Pin: Provides higher security with additional protection against forced entry.
Product Specifications
- Manufacturer: Maco
- Backset: Customizable (refer to measurement guide)
- Centres PZ: 92mm
- Spindle Size: 8mm
- Hooks: 2
- Deadbolts: 1
- Latch: 1
- Operation: Split spindle
- Handing: Non-handed
- Distance Between Inner Locking: 1490mm
- Height: 2200mm
- Top Hook to Spindle: 715mm
- Bottom Hook to Spindle: 775mm
Endurance Testing
The Maco C-TS multipoint door lock has been endurance tested to withstand 100,000 cycles, ensuring long-lasting performance.
Associated Products
We offer a comprehensive range of associated products for the Maco C-TS multipoint door locks, including keeps, spindles, handles, and other accessories to enhance your locking system.
