Description
Product Information

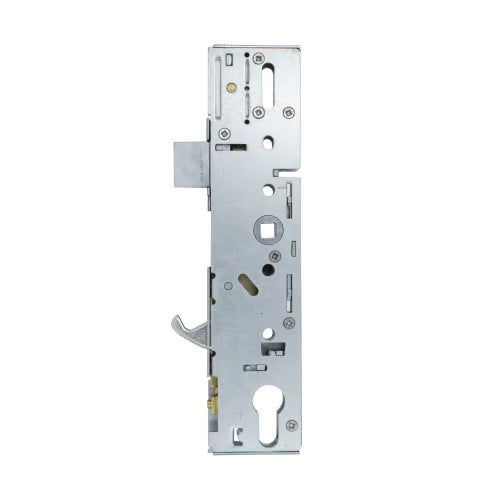

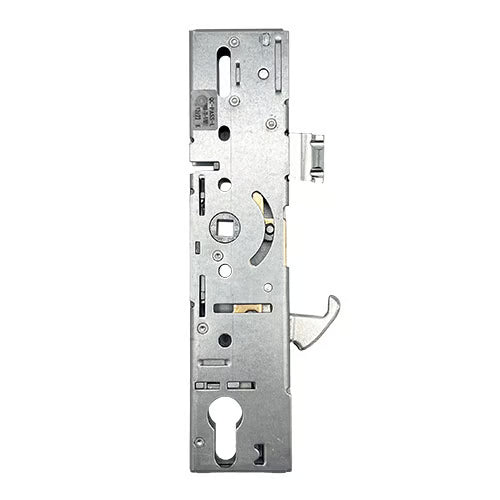

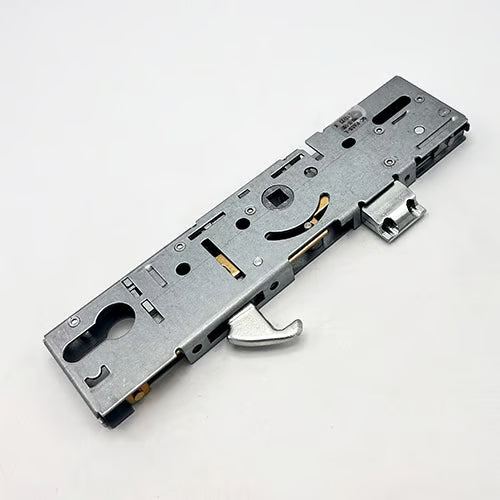

ERA Genuine Gearbox Hookbolt Version to suit Warmcore and Liniar Bi-Fold Doors.
Operation: Lift lever or split spindle
Latch Reversal:
Undo the screws in the latch to remove. Reverse and reinsert, then replace screws.
Nightlatch Split Spindle Reversal:
Remove latch to reveal a small screw. Use a small bladed screwdriver to turn the screw 180 degrees, then return latch to the correct position.
Product Specification
- Case Height: 220mm
- Case Width: Backset + 20mm
- Centres: 92mm
- Handle Screw Centres: 43mm
- Latch Throw: 17mm
- Backset: 35mm
- Spindle: Split 8mm
- Packaging: Supplied in singles
