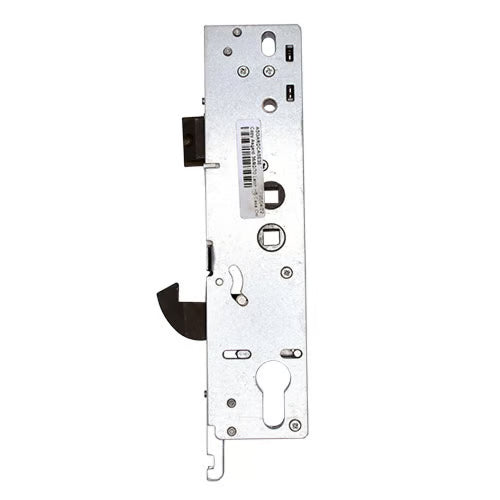

Asgard Copy Multipoint Gearbox

Product Overview: Asgard Replacement Gearbox

The Asgard replacement gearbox, often branded as Yale, is designed for seamless integration with existing Yale Asgard multipoint door locks, specifically models 7025, 7026, and 7035. Available in both 35mm and 45mm backsets, this gearbox ensures a direct fit, making it an ideal choice for replacements.

Key Features:

• Compatibility: Direct fit for Yale Asgard models 7025, 7026, and 7035.
• Backset Options: Available in 35mm and 45mm.

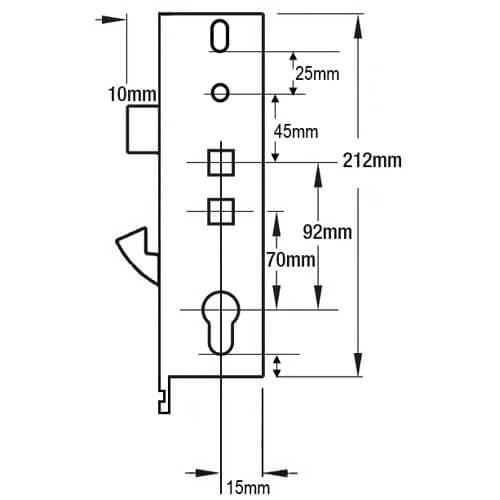

• Dimensions:
  • Height: 212mm
  • Width: 60mm
  • Hookbolt Height: 27mm
  • Latch Height: 27mm
  • Distance between latch and hook: 60mm

Installation Notes:

Original gearboxes may have included a white plastic insert for latch support, which is no longer necessary for functionality as Yale has phased out this feature.

The gearboxes are secured to the faceplate using three screws, with the top screw positioned 90mm from the top to the middle screw, and 60mm to the bottom screw.

Operation Instructions:

• Locking the Door:

  1. Close the door to automatically engage the latch.
  2. Lift the handle to engage additional locking points.
  3. Throw the deadbolt by turning the key (note: some brands may allow deadbolt engagement by simply lifting the handle).

• Unlocking the Door:

  1. Turn the key to unlock the system.
  2. Push the handle down to disengage the locking points.
  3. A quarter turn of the key will retract the latch.

Product Specifications:

• Manufacturer: Yale Copy
• Backset Measurement: 35mm or 45mm
• Centres PZ Measurement: 92mm/70mm
• Case Height: 212mm
• Case Width: 60mm
• Copy/Genuine: Copy
• Cylinder Type: Euro
• Handing: Not Handed
• Main Gearbox Mechanism: Latch & Hookbolt
• Spindle Size: Double 8mm
• Operation Type: Lift Lever or Double Spindle Nightlatch
• Packaging: Supplied individually

This replacement gearbox is a reliable choice for enhancing the security and functionality of your door locks, ensuring peace of mind and ease of use.
