Description

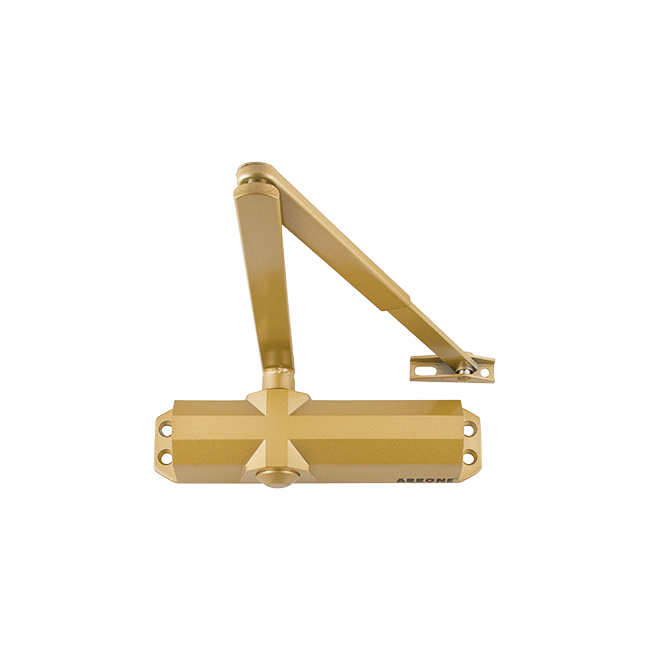

Product Specifications for Door Closing Device
Power Size: EN 2 to EN 4, adjustable by template
Functionality:
- Closing
- Latching
Cover: None

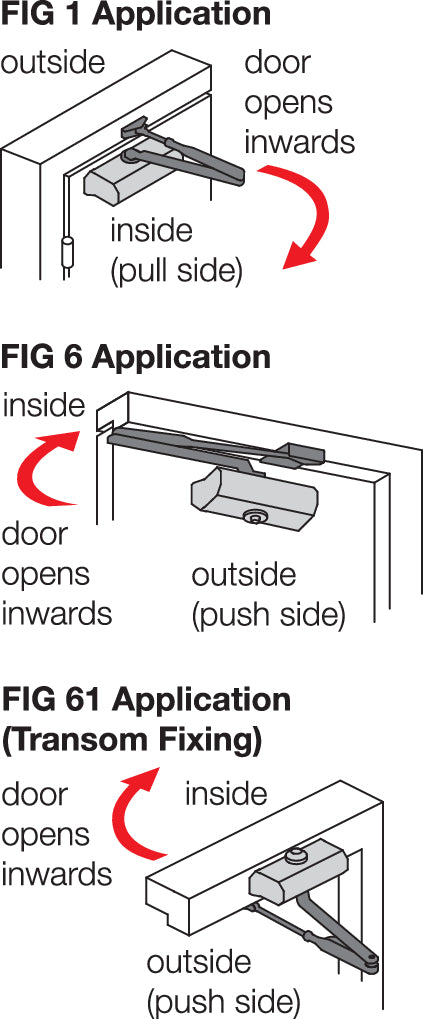

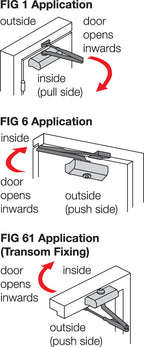

Arm Application:
- Fig 1
- Fig 6
- Fig 61 fixing positions
Testing and Compliance:
Successfully type tested for conformity to all requirements of BS EN 1154:1997
Test Parameters:
- Door Width: 950-1,100 mm
- Door Weight: 60-80 kg
Classification:
- Fig 1/Fig 61: 3 | 8 | 4/2 | 1* | 1 | 3
- Fig 6: 3 | 8 | 3 | 1* | 1 | 3
Fire Testing: Tested to BS EN 1634-1: suitable for 30, 60, and 120 minute timber fire doors
Certification:
- CE: AD0095, DOP HUK0025
- Certifire: CF603
Arm Application Details
- Figures: 1, 6, and 61
- Arm Type: Scissor arm, fixed joint, flat form, adjustable

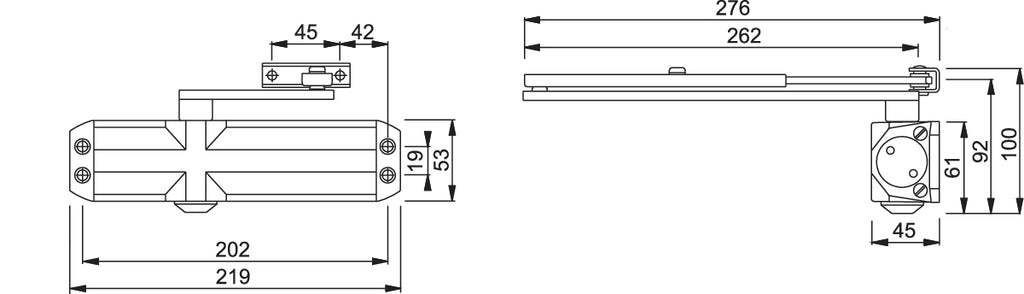

Mechanism Dimensions and Fixing Centres:
- Dimensions: 219 x 53.4 x 45 mm
- Centres: 202 x 19 mm
Fixings: Timber door
Mechanism Function: Template adjustment, closing/latching speed
Opening Angle: Max. 105° opening
Commodity Class: Door closing devices surface overhead
Type: Mechanism only
Tested Door Width: 1100 mm
Tested Door Weight: 80 kg
Mechanism Type: Rack & pinion
Door Type: Wooden door
