Description

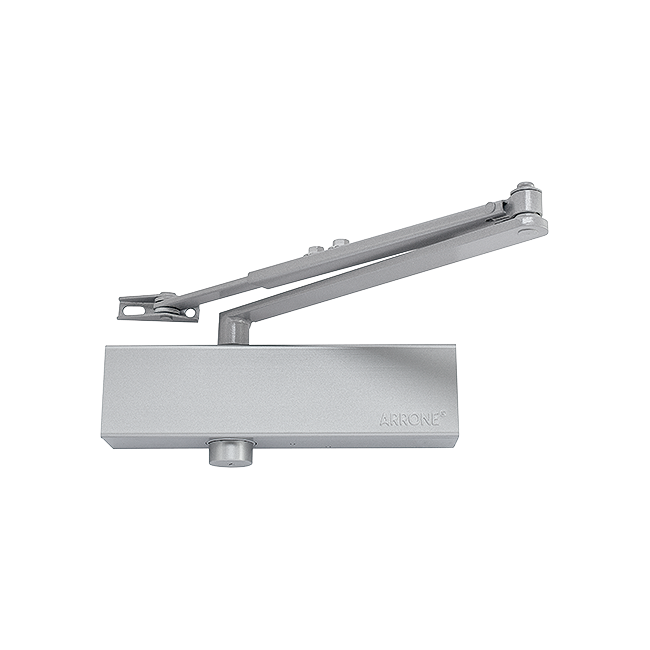

Product Specifications for Door Closing Device
Power Size: EN 2 to EN 5, adjustable by spring tension
Functionality:
- Closing
- Latching
- Backcheck
Cover Type: Slide
Testing and Compliance:
- Successfully type tested for conformity to all requirements of BS EN 1154:1997
- Tested for door width: 1,100-1,250 mm
- Tested for door weight: 80-100 kg
Classification:

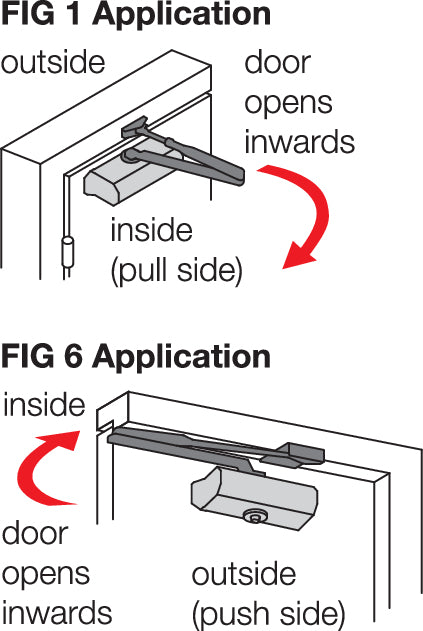

- Fig 1/Fig 61: 3 | 8 | 5/2 | 1* | 1 | 3
- Fig 6: 3 | 8 | 5/2 | 1* | 1 | 3
Fire Testing: Fire tested to BS EN 1634-1: suitable for 240 minute un-insulated steel fire doors
Certification:
- CE: AD5472
- DOP HUK0039
Arm Type: Scissor arm, adjustable

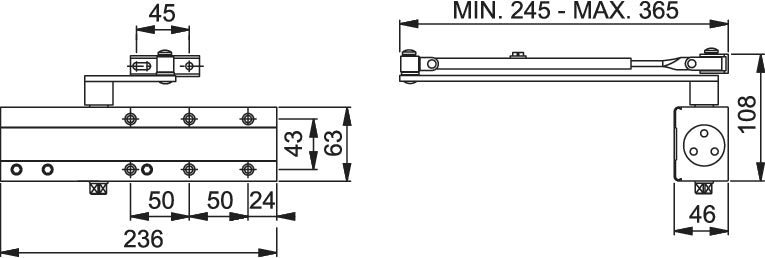

Mechanism Dimensions and Fixing Centres:
- Dimensions: 236 x 63 x 46 mm
- Centres: 50 x 50 x 43 mm
Fixings: Suitable for metal doors
Mechanism Function:
- Closing/latching speed
- Backcheck
- Spring adjustment
Opening Angle: Maximum 180° opening
Finish: SE Silver Enamel
Commodity Class: Door closing devices surface overhead
Tested Door Width: 1250 mm
Tested Door Weight: 100 kg
Mechanism Type: Rack & pinion
Power Size: 2 to 5
Shape: Trim Plate
Door Type: Metal door
