Description
Product Overview
Introducing the Alpro T2 Transom Closers, designed for both single and double action doors. With a fixed strength size 2, these closers are perfect for ensuring smooth and reliable door operation.
Key Features
- Weight Capacity: Suitable for doors weighing up to 100kg.
- Width Compatibility: Accommodates doors with a maximum width of 950mm.
- Testing Standards: Compliant with BS EN1154 for quality assurance.
Functional Highlights
- Hold Open Feature: Allows doors to remain open at a 90-degree angle.
- Back Check: Prevents the door from being opened too forcefully.
- Adjustable Closing Speed: Customize the speed at which the door closes.
- Adjustable Latch Action: Tailor the latch action to your preference.
Models Available

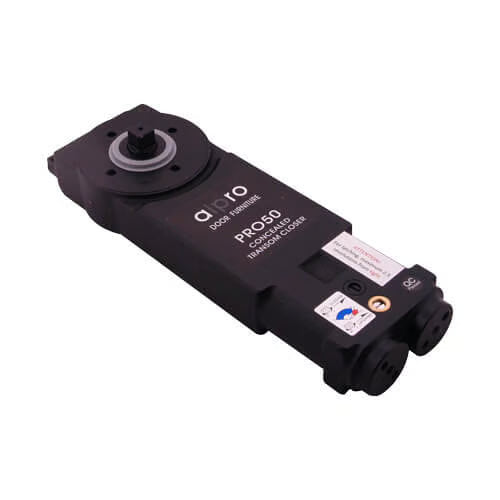

- 510290T1: Comes with a Side Load Arm, Bottom Pivot, and Fixings.

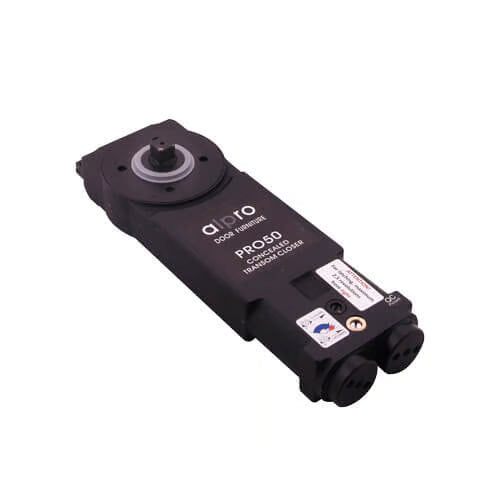

- 510290T2: Includes an End Load Arm, Bottom Pivot, and Fixings.
Product Specifications
- Fitting: Concealed installation above the door in the transom.
-
Dimensions:
- Height: 37mm
- Width: 90mm
- Length: 293mm
- Spindle Options: Standard spindle length of 12mm, with special orders available in 17mm, 22mm, and 28mm.
- Non-Handed Design: Versatile installation for any door orientation.
For more detailed information on the functions and installation, please refer to our FAQs.
