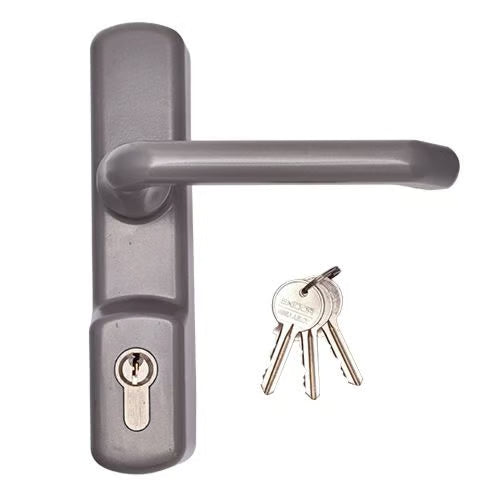

Exidor 500 Series Outside Access Device for UPVC doors.
This lever version features a euro cylinder and is designed to meet the dimensional requirements of the Equality Act 2010 (formerly known as the DDA) and BS8300 – Approved document “M”.
Operation:
When locked, the lever is disengaged from the mechanism, allowing it to pull down without enabling unauthorized entry. When unlocked, the lever, spindle, and mechanism engage, permitting the shoot bolts, latch, or pullman latches to be withdrawn from outside the door. Once the door is opened from either side, the lever remains unlocked until it is re-locked with a key. Please note that the unit is NOT self-locking.
Product Specification
- Height: 161mm
- Width: 40mm
- Projection: 78.5mm
- Lever Length: 133.5mm
- Suits doors up to 55mm thick
- Supplied with a half euro cylinder with 3 keys, adjustable cam, and rear entry retaining screw
- Replacement cylinder code: FD302CYL
- Can be incorporated into a master key system or keyed alike suite in-house (the euro cylinder will require replacing)
- Boxed
- Non-handed (lever is reversible)
- Surface mounted on the outside of the door using machine screws
This device combines security and accessibility, making it an ideal choice for UPVC doors.
