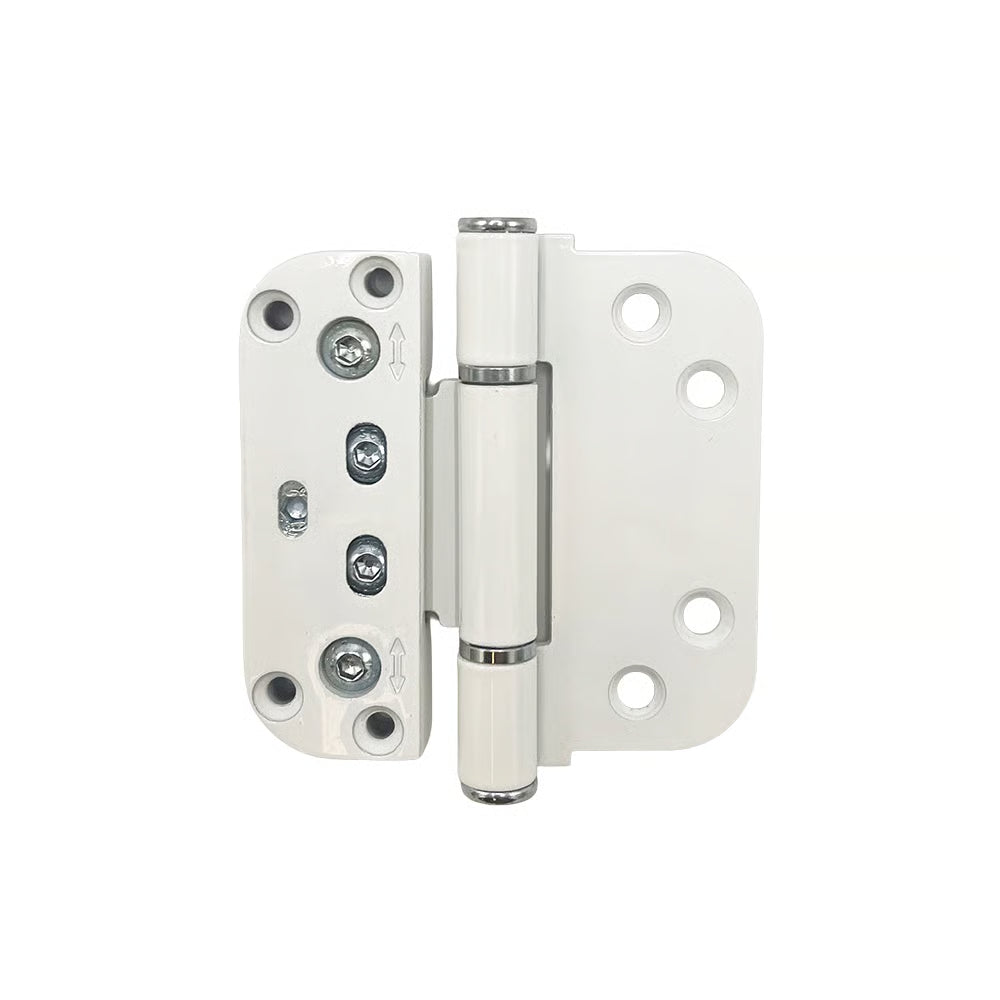

4915 3D Adjustable Composite Timber Door Hinge

Product Information

Key Features

• Non-handed design for use on either door side

• Three-way independent adjustment: +/- 2.5mm height, +/- 2.5mm side, +/- 2.0mm depth (compression)

• Adjustments performed in situ with hinge fixed to door

• Single 4mm Allen key adjustment tool

• Load capacity of 80kg over 100,000 cycles

• Low friction bearings

• Steel hinge body with zinc alloy adjustment housings

• Corrosion resistance tested to BS EN1670 Grade 5 (480 hours)

• Compliance with BS EN1935:2002 for single-axis hinges

Product Specification

• Manufacturer: Nico.

• Colour: Select from drop-down

• Handing: Non Handed.

• Size: 92mm x 92mm.

• Max Load: 80kg.

• Base Material: Steel hinge body with high performance zinc alloy adjustment housings.

• Bearing Type: Low friction bearings.

• Supplied with: Fixing Screws.

• Maintenance: Free with independent 3-way adjustment +/- 2.5mm height and side, +/- 2.0mm depth.

• Adjustment: Hinge remains fixed to door during adjustment.

• Tool Required: All adjustments via one 4mm Allen key.

• Testing Standards: Tested to BS EN1670 Grade 5 and BS EN1935: 2002.

• Manufacturing Standards: Made in Britain to ISO 9001 Quality System.
