Product Overview

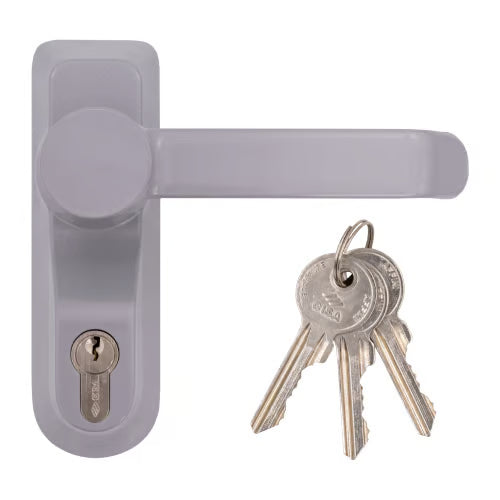

Introducing the Briton 1413E/LE Outside Access Device, designed for both timber and metal doors. This robust lever version features a euro cylinder, ensuring security and ease of use.
Product Specifications
- Height: 175mm
- Width: 55mm
- Projection: 81mm
- Lever Length: 133mm
- Door Thickness Compatibility: Suits doors up to 40mm and 70mm thick
- Cylinder: Supplied with a half euro cylinder, includes 3 keys, adjustable cam, and side entry retaining screw
- Replacement Cylinder Code: I093010N (Non Restricted)
- Masterkey System Compatibility: Can be incorporated into a masterkey system or keyed alike suite in-house (note: the euro cylinder will require replacing)
- Shear Pin Feature: The lever variant is attached to the body by a shear pin, which breaks under severe abuse to protect the mechanism. The shear pin can be easily replaced.
- Fixings: Supplied with fixings suitable for timber or metal doors
- Packaging: Boxed
- Handing: Non-handed (lever is reversible)
- Mounting: Surface mounted on the outside of the door using machine screws
Operation
- Locked State: When locked, the lever disengages from the mechanism but still pulls down, preventing unauthorized entry.
- Unlocked State: When unlocked, the lever, spindle, and mechanism engage, allowing the shoot bolts, latch, or pullman latches to be withdrawn from outside the door.
- Lever Locking: Once the door is opened from either side, the lever remains unlocked until re-locked with a key. Please note that the unit is NOT self-locking.
This device combines security with functionality, making it an ideal choice for various applications.
