YS170 Latch 3 Hooks Split Spindle Multipoint Door Lock

Yale YS170 Multipoint Door Lock Overview

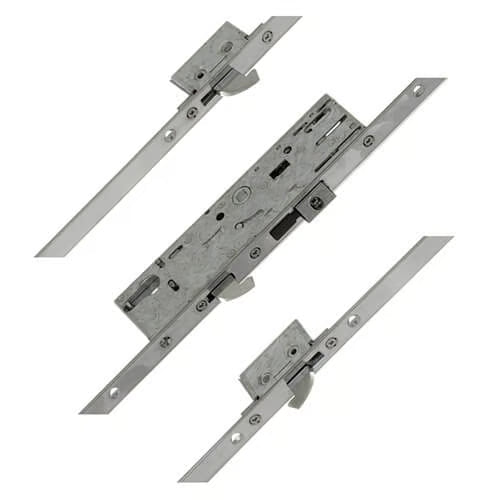

The Yale YS170 multipoint door lock is designed for enhanced security and versatility, featuring 3 hooks and 1 latch. This innovative lock is available in both short and long versions, making it adaptable to various door types.

Key Features:

• Central Hookbolt: Provides increased security.
• Easily Reversible Latch: Allows for convenient installation.
• Distinctive Yale Logo: Easily identifiable once removed from the door.
• PZ Centres: Standard 92mm configuration with hook and latch bolt setups.

Specifications:

• Gearbox Options: Available in 35mm or 45mm backsets.
• Dimensions: Gearboxes measure 217mm high plus backset +18mm.
• Latch and Deadbolt Height: Both measure 28mm.
• Hook Height: 28mm with a throw upwards.
• Screw Hole Measurements: Top to middle screw hole is 110mm; middle to bottom is 52mm.

Operation Instructions:

To lock the door:

1. Lift the handle upwards to engage the locking points.
2. Turn the key to lock the locking points and main deadbolt (if applicable).

To unlock the door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Corrosion Resistance: Tested to BS EN 1670:2007 Grade 4 (240hrs. NSST).

Associated Products: We offer a range of accessories for the Yale YS170, including keeps, spindles, handles, and more.

Latch Reversal Instructions:

1. Undo the screw(s) in the latch to remove.
2. Reverse the latch, reinsert, and replace the screw(s).

Applications: Suitable for UPVC, aluminium, timber, and composite doors.

Product Specifications:

• Manufacturer: Yale
• Backset: Select from drop-down options.
• Centres PZ: 92mm
• Faceplate: Select from drop-down options.
• Spindle Size: 8mm
• Hooks: 3
• Latch: 1
• Main Gearbox: Latch & hookbolt
• Operation: Select from drop-down options.
• Spindle: Split 8mm
• Handing: Non-handed
• Distance Between Inner Locking: 1198mm
• Height: 1930mm
• Top Hook to Spindle: 441mm
• Bottom Hook to Spindle: 757mm

Explore our selection of Yale YS170 multipoint door locks and ensure your home is secure with this reliable locking solution.
