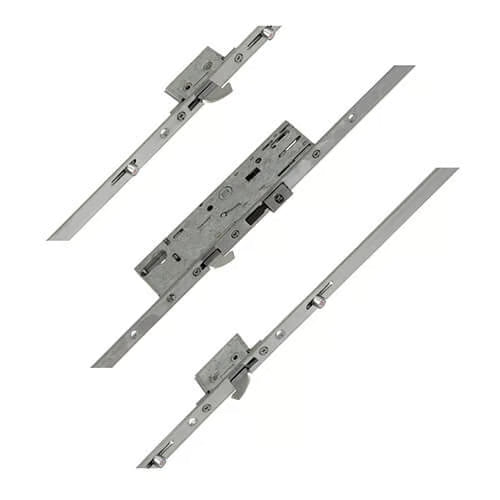

Yale YS170 Multipoint Door Lock Overview
The Yale YS170 multipoint door lock is designed for enhanced security and durability, featuring a robust configuration of 4 rollers, 3 hooks, and 1 latch. This lock is ideal for both UPVC and aluminium doors, making it a versatile choice for various applications.
Key Features:
-
Enhanced Security: The YS170 includes a central hookbolt that provides additional security, along with easily reversible latch functionality.
-
Distinctive Design: Each lock is stamped with the recognizable Yale logo, ensuring authenticity. The lock features a 92mm PZ center with a unique hook and latch bolt configuration, distinguishing it from other models like the Yale G2000.
-
Adaptability: We offer the most popular versions of the YS170, which can be adapted to meet specific requirements. If a precise match is needed, we can source the exact product.
-
Gearbox Options: Available in 35mm or 45mm backsets, the YS170 gearboxes come with a split spindle mechanism, allowing for a lift lever function when using a solid spindle.
Specifications:
-
Dimensions: Gearboxes measure 217mm high plus backset +18mm. The latch and deadbolt both measure 28mm high, with a 53mm distance between the bottom of the latch and the top of the hook.
-
Installation: Gearboxes are fitted to faceplates with three screw holes, with specific measurements for top to middle (110mm) and middle to bottom (52mm) screw holes.
-
Roller Functionality: Rollers assist in compressing the door against the frame, preventing dust and water ingress, while also helping to maintain the door's shape.
Operation Instructions:
To lock the door:
- Lift the handle upwards to engage the locking points.
- Turn the key to secure the locking points and main deadbolt (if applicable).
To unlock the door:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.
Corrosion Resistance: The YS170 has been tested to BS EN 1670:2007 Grade 4, ensuring durability against corrosion for up to 240 hours.
Latch Reversal: To reverse the latch, simply undo the screws, remove the latch, reverse it, and reinsert the screws.
Associated Products: We also stock a variety of related products for the Yale YS170, including keeps, spindles, handles, and other accessories.
This multipoint lock is a reliable choice for anyone looking to enhance the security and functionality of their doors.
