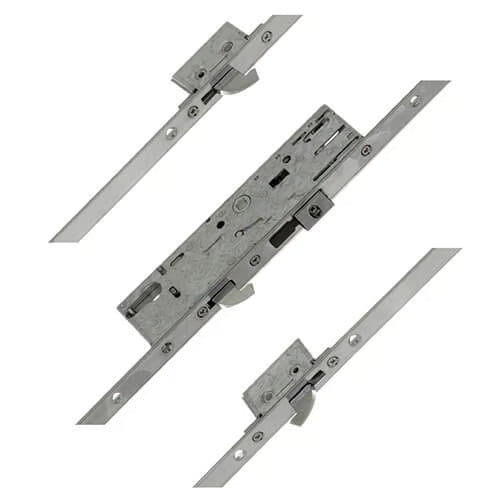

YS170 Latch 3 Hooks 20mm Square Faceplate Multipoint Door Lock - Option 2

Yale YS170 Multipoint Door Lock Overview

The Yale YS170 multipoint door lock is designed for enhanced security and ease of use, featuring 3 hooks and 1 latch. This lock is part of a popular range by Yale, known for its reliability and adaptability to various door requirements.

Key Features:

• Identification: Easily recognizable by the distinctive Yale logo stamped on the lock.
• Configuration: 92mm PZ centres with a unique hook and latch bolt setup. The hook is positioned below the latch, differentiating it from the Yale G2000 model.
• Compatibility: Part of a broader range that includes Yale, Millenco, Millenco Mantis, and Lockmaster brands. While they may appear similar, these locks are not interchangeable.

Specifications:

• Gearbox Options: Available in 35mm or 45mm backsets with a split spindle mechanism, allowing for a lift lever function.
• Dimensions: Gearboxes measure 217mm high plus backset +18mm. The latch and deadbolt both measure 28mm high, with a 53mm distance between the latch and hook.
• Screw Hole Measurements: Gearboxes are fitted with faceplates that have three screw holes; the top to middle measures 110mm, and the middle to bottom measures 52mm.

Operation Instructions:

• To Lock:

  1. Lift the handle upwards to engage the locking points.
  2. Turn the key to lock the locking points and main deadbolt (if applicable).

• To Unlock:

  1. Turn the key to unlock the system.
  2. Push the handle downwards to disengage the locking points and retract the latch.

Durability: Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST).

Associated Products: A variety of related products are available, including keeps, spindles, handles, and accessories tailored for the Yale YS170 multipoint door locks.

Applications: Suitable for UPVC, aluminium, timber multipoint, or composite doors.

Product Specifications:

• Manufacturer: Yale
• Backset: Selectable from drop-down options
• Centres PZ: 92mm
• Faceplate: Selectable from drop-down options
• Spindle Size: 8mm
• Hooks: 3
• Latch: 1
• Main Gearbox: Latch & hookbolt
• Operation: Selectable from drop-down options
• Spindle: Split 8mm
• Handing: Non-handed
• Distance Between Inner Locking: 1630mm
• Height: 1836mm
• Top Hook to Spindle: 806mm
• Bottom Hook to Spindle: 824mm

This comprehensive overview ensures you have all the necessary information to understand and utilize the Yale YS170 multipoint door lock effectively.
