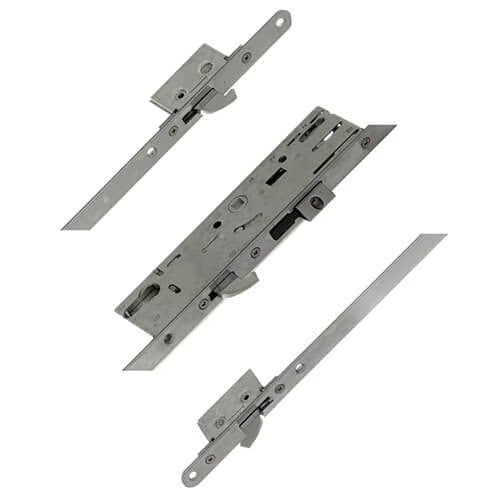

Product Overview: Yale YS170 Multipoint Door Lock
The Yale YS170 multipoint door lock is designed for enhanced security and ease of use, featuring a robust configuration of 3 hooks and 1 latch. This lock is a popular choice among homeowners and builders alike, known for its reliability and adaptability to various door types.
Key Features:
-
Identification: The YS170 is easily recognizable by the distinctive Yale logo stamped on the lock. It features a 92mm PZ (centres) configuration with a unique hook and latch bolt setup, where the hook is positioned below the latch, differentiating it from the Yale G2000 model.
-
Compatibility: This lock is part of a broader range of Yale products, including Millenco and Lockmaster brands. While they may appear similar, these locks are not interchangeable, ensuring that you select the correct model for your needs.
-
Gearbox Options: Available in 35mm or 45mm backsets, the YS170 gearboxes come with a split spindle mechanism, allowing for versatile operation, including a lift lever function when using a solid spindle.
-
Dimensions: The gearboxes measure 217mm high plus an additional 18mm for the backset. The latch and deadbolt both measure 28mm high, with a 53mm distance between the latch and hook.
-
Installation: The gearboxes are designed with faceplates featuring three screw holes, ensuring a secure fit. The top to middle screw hole measures 110mm, while the middle to bottom measures 52mm.
Operation Instructions:
-
To Lock the Door:
- Lift the handle upwards to engage the locking points.
- Secure the locking points and main deadbolt (if applicable) by turning the key.
-
To Unlock the Door:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.
Durability: The YS170 has been corrosion tested to BS EN 1670:2007 Grade 4 (240 hours NSST), ensuring long-lasting performance in various environments.
Associated Products: We offer a comprehensive range of accessories for the Yale YS170, including keeps, spindles, handles, and more, making it easy to find everything you need for installation or replacement.
Applications: This lock is suitable for various door types, including UPVC, aluminum, timber multipoint, and composite doors, providing versatility for different installations.
Product Specifications:
- Manufacturer: Yale
- Backset: Select from drop-down options
- Centres PZ: 92mm
- Faceplate: Select from drop-down options
- Spindle Size: 8mm
- Hooks: 3
- Latch: 1
- Main Gearbox: Latch & hookbolt
- Operation: Select from drop-down options
- Spindle: Split 8mm
- Handing: Non-handed
- Distance Between Inner Locking: 1630mm
- Height: 1770mm
- Top Hook to Spindle: 806mm
- Bottom Hook to Spindle: 824mm
