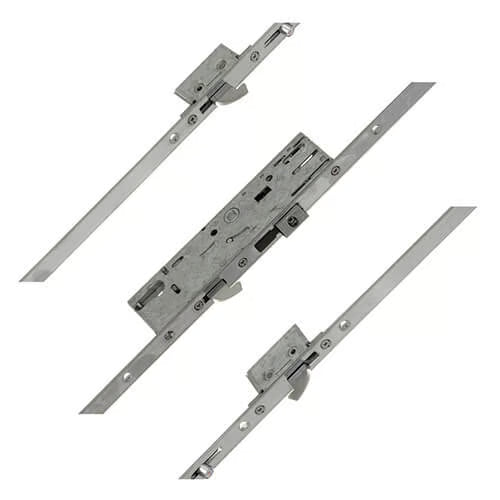

Yale YS170 Multipoint Door Lock Overview
The Yale YS170 multipoint door lock is designed for enhanced security and ease of use. This lock features a robust configuration with 2 rollers, 3 hooks, and 1 latch, making it a reliable choice for both UPVC and aluminium doors.
Key Features:
-
Central Hookbolt: The YS170 includes a central hookbolt that significantly boosts security while allowing for an easily reversible latch.
-
Distinctive Identification: Each lock is stamped with the iconic Yale logo, ensuring authenticity. The lock's dimensions include 92mm PZ centres, with the hook positioned below the latch, differentiating it from the Yale G2000 model.
-
Versatile Gearbox Options: Available in 35mm or 45mm backsets, the YS170 gearboxes feature a split spindle mechanism, which can also function as a lift lever with a solid spindle.
-
Durable Construction: The YS170 is corrosion tested to BS EN 1670:2007 Grade 4 (240 hours NSST), ensuring longevity and reliability.
Specifications:
- Manufacturer: Yale
- Backset: Selectable from drop-down options
- Centres PZ: 92mm
- Faceplate: Selectable from drop-down options
- Spindle Size: 8mm
- Rollers: 2
- Hooks: 3
- Latch: 1
- Main Gearbox: Latch & hookbolt
- Operation: Selectable from drop-down options
- Spindle: Split 8mm
- Handing: Non-handed
- Distance Between Inner Locking: 1448mm
- Distance Between Outer Locking: 1642mm
- Height: 2200mm
- Top Hook to Spindle: 691mm
- Bottom Hook to Spindle: 757mm
- Top Roller to Spindle: 788mm
- Bottom Roller to Spindle: 854mm
- Door Material: UPVC, Aluminium
Operation Instructions:
To lock the door:
- Lift the handle upwards to engage the locking points.
- Turn the key to secure the locking points and main deadbolt (if applicable).
To unlock the door:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.
Additional Information:
Yale YS170 locks are part of a broader range that includes brands like Millenco and Lockmaster. While they may appear similar, these locks are not interchangeable. We also offer a variety of associated products, including keeps, spindles, handles, and accessories, to complement your Yale YS170 multipoint door lock.
For latch reversal, simply undo the screws in the latch, reverse it, and reinsert the screws.
This lock is an excellent choice for those seeking a secure and reliable locking solution for their doors.
