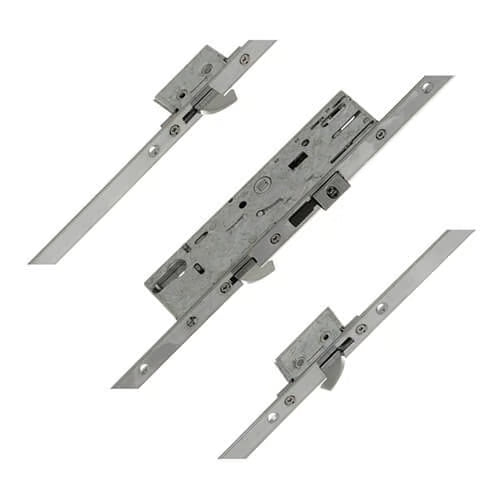

Product Overview: Yale YS170 Multipoint Door Lock
The Yale YS170 multipoint door lock is designed for enhanced security and ease of use, featuring 3 hooks and 1 latch. This lock is a popular choice among homeowners and builders alike, known for its reliability and robust construction.
Key Features:
-
Identification: The YS170 is easily recognizable by the distinctive Yale logo stamped on the lock. It features a 92mm PZ (centres) configuration with a unique hook and latch bolt setup, where the hook is positioned below the latch, differentiating it from the Yale G2000 model.
-
Compatibility: While the YS170 is part of a broader range of locks including Yale, Millenco, Millenco Mantis, and Lockmaster brands, it's important to note that these locks, despite their similar appearance, are not interchangeable.
-
Gearbox Options: Available in 35mm or 45mm backsets, the YS170 gearboxes come with a split spindle mechanism, allowing for a lift lever function when using a solid spindle.
-
Dimensions: The gearboxes measure 217mm in height plus the backset, with the latch and deadbolt both measuring 28mm high. The distance between the bottom of the latch and the top of the hook is 53mm, with the hook throwing upwards.
-
Installation: Gearboxes are fitted to faceplates with three screw holes, with specific measurements for easy installation: 110mm from the top to the middle screw hole and 52mm from the middle to the bottom.
Operation Instructions:
-
To Lock the Door:
- Lift the handle upwards to engage the locking points.
- Secure the locking points and main deadbolt (if applicable) by turning the key.
-
To Unlock the Door:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.
Durability: The YS170 has been corrosion tested to BS EN 1670:2007 Grade 4 (240 hours NSST), ensuring long-lasting performance in various environments.
Applications: This lock is versatile and can be used in UPVC, aluminum, timber multipoint, or composite doors.
Product Specifications:
- Manufacturer: Yale
- Backset: Select from drop-down options
- Centres PZ: 92mm
- Faceplate: Select from drop-down options
- Spindle Size: 8mm
- Hooks: 3
- Latch: 1
- Main Gearbox: Latch & hookbolt
- Operation: Select from drop-down options
- Spindle: Split 8mm
- Handing: Non-handed
- Distance Between Inner Locking: 1448mm
- Height: 2200mm
- Top Hook to Spindle: 691mm
- Bottom Hook to Spindle: 757mm
Explore our range of associated products for the Yale YS170 multipoint door lock, including keeps, spindles, handles, and accessories to complete your security solution.
